Manufacturer: Parallax
Product Code: Sensors-Altimeter-MS5607_29124
Weight:0.25 lb
Reward Points:0
In Stock
20
Price: $29.99

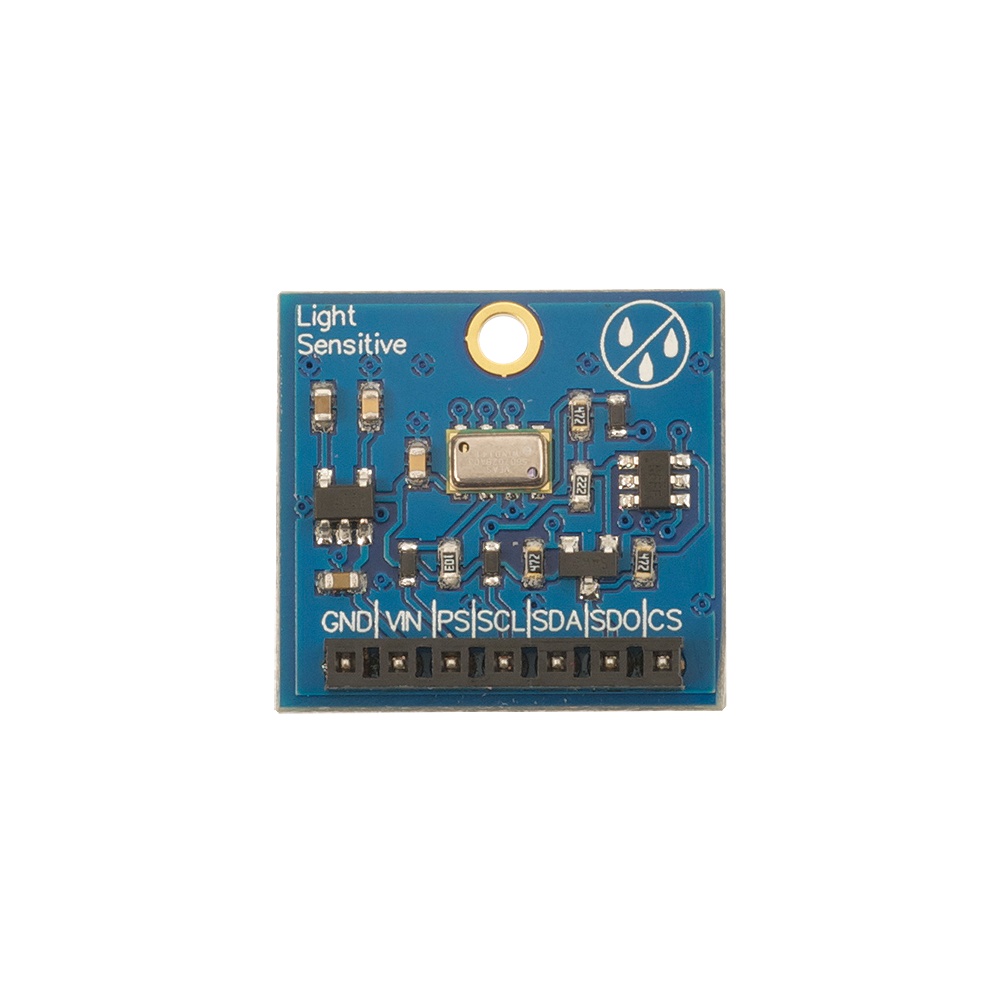

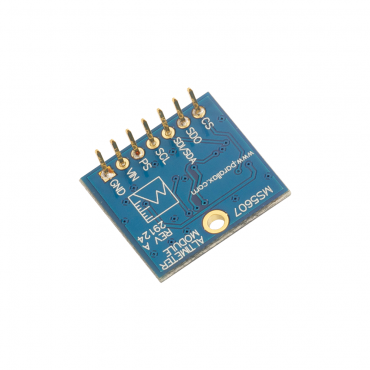

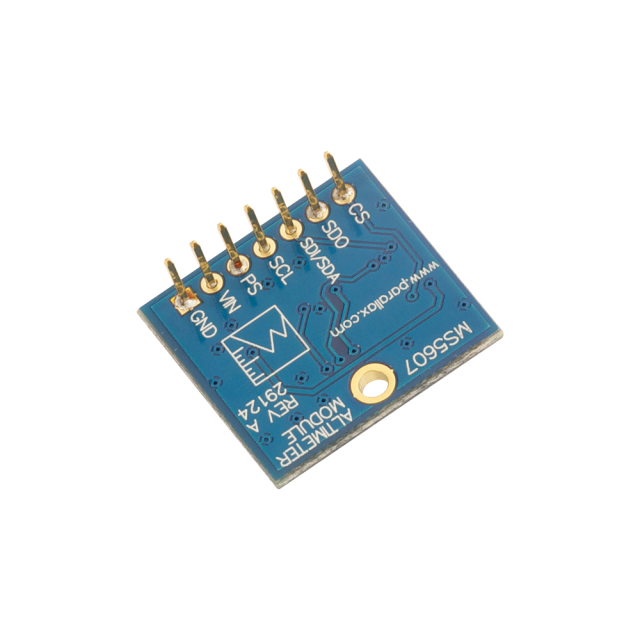

Altimeter Module MS5607.Altimeter Module MS5607 - bottom view.

The Altimeter Module is a high resolution (20 cm) altimeter sensor. It will give extremely accurate, altitude, pressure, and temperature readings.

The module includes a high-linearity barometric pressure sensor and a high-resolution temperature output, allowing implementation of an altimeter/thermometer without any additional sensors. Different operation modes allow the user to optimize for conversion speed or current consumption. The module is designed for use with a large variety of microcontrollers with different voltage requirements.

This module is well-suited for high-altitude ballooning and has been used with great success in that role.


Key Features:

  • 24-bit pressure and temperature values.
  • Wide pressure range.
  • Successfully tested at 120,000 feet.


Application Ideas:

  • Mobile altimeter / barometer systems.
  • Rate of Climb and Descent Indicator (RCDI).
  • High altitude balloons.
  • Height sensing.
  • Navigation.
  • Weather station.
  • Altitude hold for UAVs.
  • IMU builds.


Details:

  • Pressure range of 10 –1200 mbar.
  • Thermometer of -40 to +85 °C with <.01 °C resolution.
  • Power Requirements: 3.3 to 6.5 VDC.
  • Communication Interface: I2C (up to 400 kHz) or SPI (20 MHz).
  • Dimensions: 0.85 X 0.80 in (2.16 X 2.03 cm).
  • Operating temperature: -40 to +185 °F (-40 to +85 °C).
