Caster Wheel Kit Rev. B

Manufacturer: Parallax
Product Code: WHEEL-Caster-Kit_28961
Weight:1.25 lb
Reward Points:0
In Stock
13
Price: $48.99

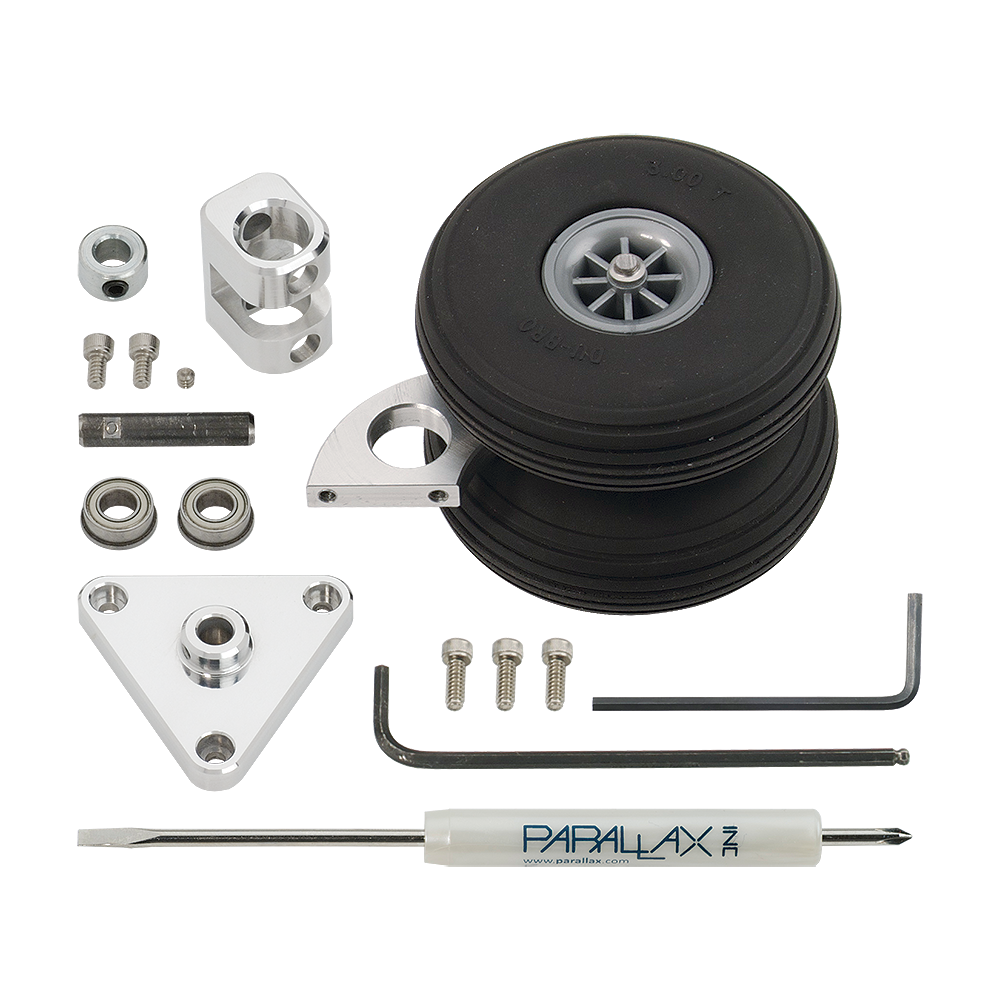

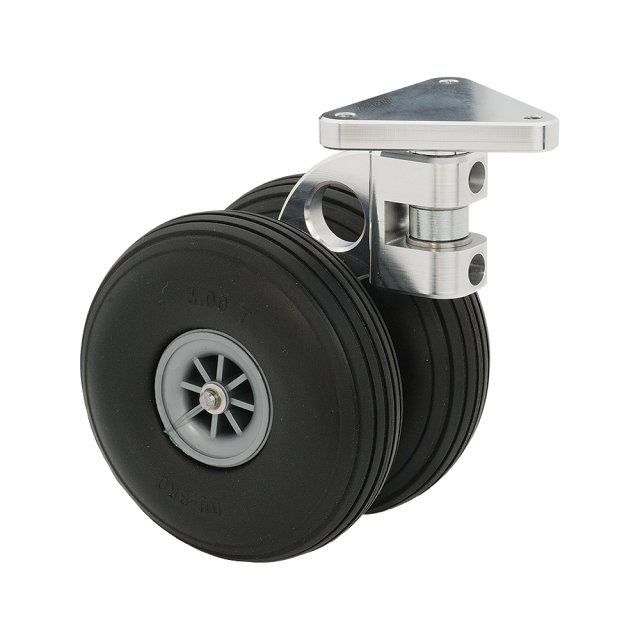

Caster Wheel Kit.Caster Wheel Kit disassembled.Caster Wheel Kit application.

This kit contains a single, precision-machined caster assembly. High-quality 6061 machined aluminum components are combined with smooth-rolling ball bearings and durable 3-inch pneumatic rubber tires. The dual independent tire design reduces vibration and drag, as well as increases load-carrying capacity.

This Caster Wheel Kit Rev B is designed to be completely maintenance-free, and should deliver long life and consistently performance. The durable, sealed pneumatic tires are low-bounce and provide a smooth ride, even on rough surfaces.


Key Features:

  • Dual 3-inch (76 mm) sealed pneumatic rubber tires.
  • High quality ball bearings for low-friction swivel action.
  • Quick and easy assembly.
  • Precision machined 6061 aluminum parts.


Application Ideas:

  • Autonomous indoor/outdoor robot development.
  • Tele-presence robot base platforms.
  • Sentry/Surveillance robot designs.


Details:

  • Overall height is 3.80 inches (9.65 cm).
  • Ball bearing swivel assembly included.
  • Weight = 0.4 lbs per assembly.
  • Dimensions: 3 inches (15.24 cm) diameter.  Wheel outer pivot arc swing is approx 6 inches (15.24 cm) in diameter.
  • Operating temperature range: +32 to +120 °F (0  to +49 °C).


Kit Contents:

  • (1)  -  Arm Assembly.
  • (1)  -  Swivel Block.
  • (1)  -  Swivel Rod.
  • (1)  -  Base Plate.
  • (2)  -  Socket Cap Screw, #6-32 x 1/4 inch length.
  • (1)  -  Set Screw, slotted #6-32 x 1/8 inch.
  • (2)  -  Flange Bearing, 0.25 inch ID, 0.5 inch OD.
  • (1)  -  Shaft Collar, 0.25 inch ID.
  • (3) -   Screw, #6 x 3/8", Cap ,SS.


NOTES: If using with the Arlo Robotic System, you will need two Caster Wheel Kits to help stabilize the robot.
