Manufacturer: Parallax
Product Code: CHRG-PWR-Pack_28989
Weight:1.25 lb
Reward Points:0
In Stock
Price: $59.99

Li-ion Power Pack Full Kit.Li-ion Power Pack Full Kit.

The Li-ion Power Pack-Charger Full Kit is an integrated storage cell and charging system on a single 3” x 4” printed circuit board. It's compatible with most 18650-size Li-ion cells.Two Li-ion 18650-size cells are included. We recommend our 7.5VDC,1 Amp Power Supply for charging (not included).

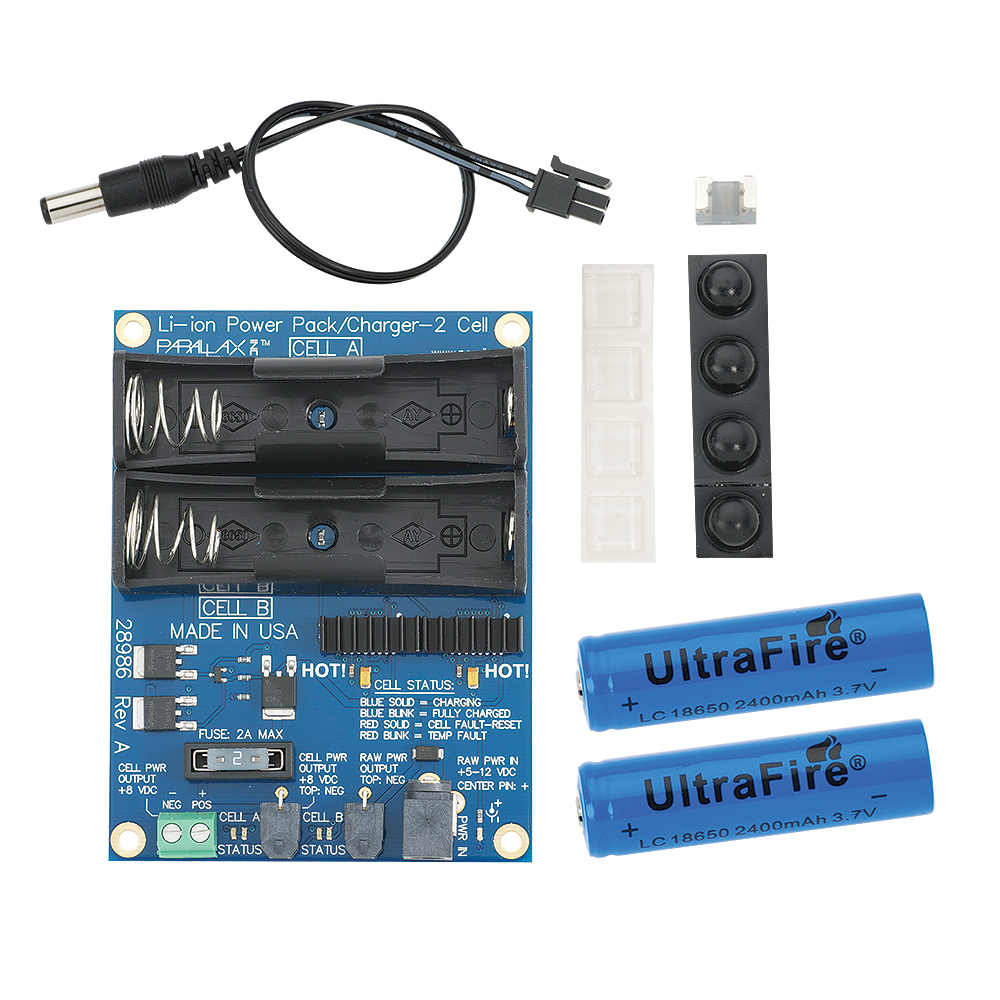

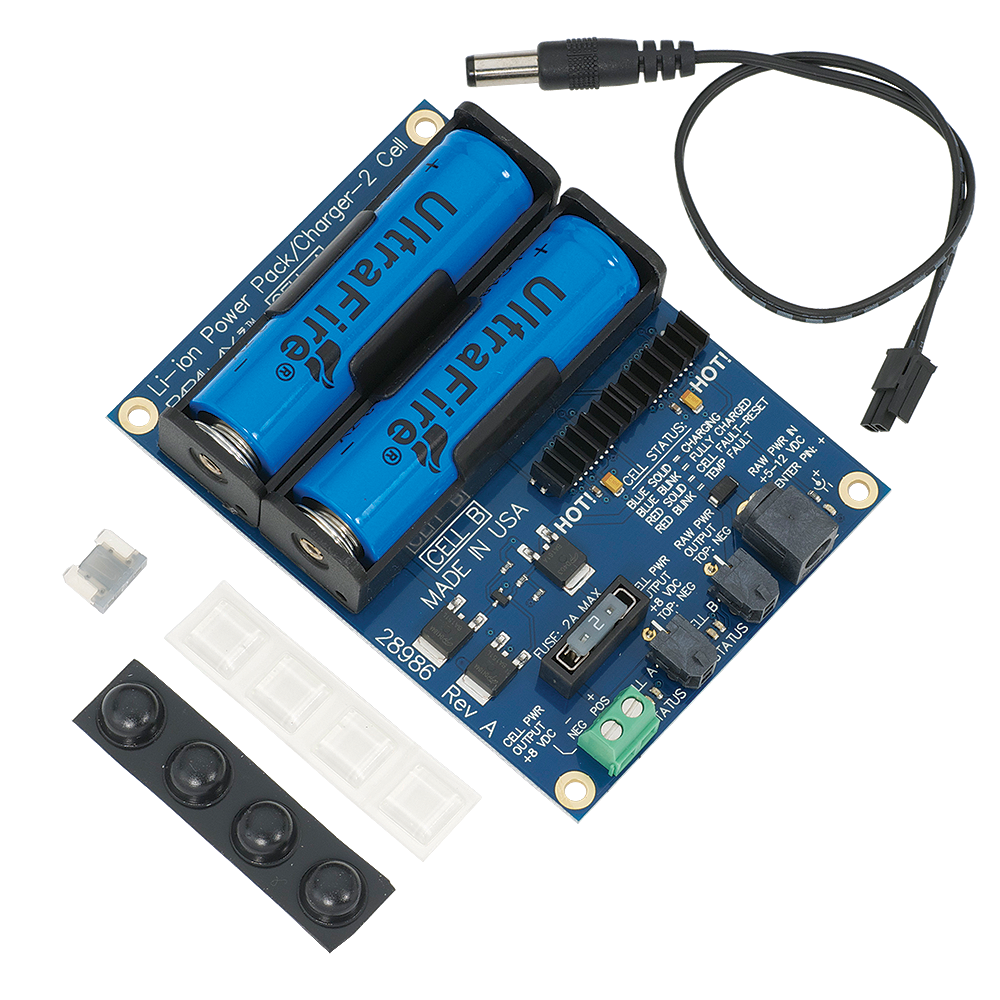

This "Full Kit" is a bundle of Power Pack Charger, and (2) Li-Ion Cells.

Key Features:

  • Holds two rechargeable/replaceable 3.7 volt Li-ion 18650 cells.
  • Rechargeable Li-ion cells don’t need to be removed from the Power Pack for recharging—charging circuitry is built into the board.
  • Multiple LED indicators provide charge readiness information for each individual cell; status key for the LED indicators is printed on the board.
  • Aggressive holders retain cells in any board orientation and in moderate shock environments, such as mobile robotic applications.
  • Dedicated circuitry continuously monitors the charging process to ensure safety, efficiency, and to maximize the number of charge/discharge cycles of each cell.
  • (2) Li-ion Cells included.


  • On-board output fuse protection.
  • Nominal 7.4 VDC output 8.2 VDC maximum.
  • Automatic charge/discharge switching circuitry.
  • Charging Power Requirements:  +5–12 VDC @ 1 A (min.);  2.1 mm center positive barrel jack supply.
  • Power Output:  Unregulated nominal 7.4 VDC @ 1800–2600 mAh (depending on cells used).
  • Dimensions:  2.65 x 3.05 x 1.00 in (7.6 x 10.2 x 2.54 cm).
  • Charging Time:  1 to 6 hours, depending upon the discharge level and capacity of the cells used.
  • Dimensions: 3.0 x 4.0 x 1.0 in (7.6 x 10.2 x 2.54 cm).
  • Operating temp range: -40 to +185 °F (-40 to +85°C).

NOTE: USPS had previously banned the shipment of li-ion primary and secondary batteries to all international destinations. However, as of Nov. 15th, 2012, USPS has reversed this ruling and re-instated the allowance of shiping li-ion batteries to international destinations (Read more here).
