Motor Mount & Wheel Kit - Molded Plastic

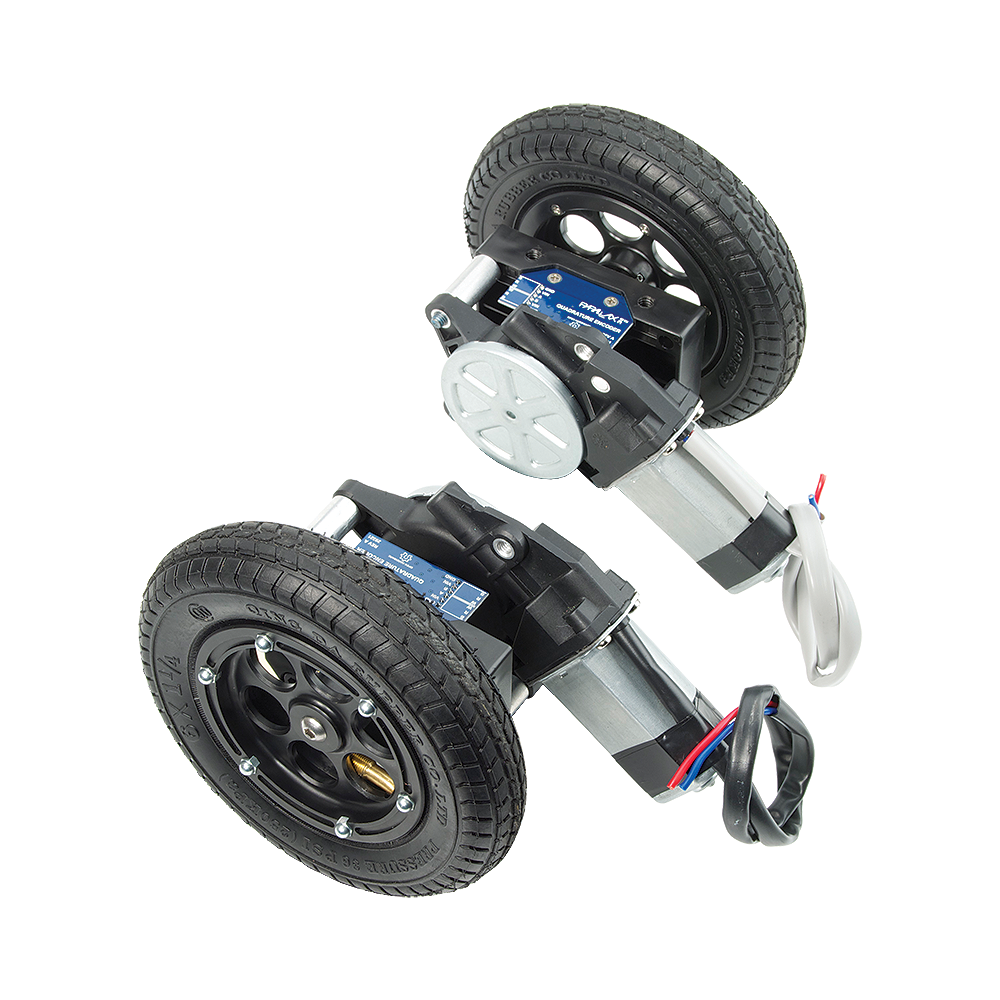

The molded plastic Motor Mount and Wheel Kit is a complete mechanical drive system designed for mobile robotic platforms. The motors are worm-gear driven, and the main drive axle (0.5” dia.) is cradled in a ball bearing assembly for smooth-rolling performance. The included 36-position disk Quadrature Encoders resolve to 144 discrete ticks per tire revolution for precision navigation.

Ready to build your own custom mid-sized robot? As part of the Arlo Robotic System, Parallax offers robotic platforms, wheel kits, development boards, sensors, components, hardware, and accessories to bring your robot to life.


Key Features:

• Light-weight molded plastic components for smooth, worry-free performance.
• 20 lb. payload capacity.
• Compatible with any microcontroller.
• 144 encoder positions per revolution provide 0.14” of linear travel accuracy.
• Conveniently positioned pre-tapped screw holes for easy mounting.
• Rugged 6” pneumatic tires are suitable for a variety of terrain.
• Smooth-rolling and quiet performance.


Application Ideas:

• Autonomous mobile robotic platform.
• Tele-presence robot drive system.
• Remote-controlled “sentry robot”.


Details:

• Compatible with our Arlo Base Kit (#28960).
• DC Motor nominal operating voltage = 12.0 VDC.
• Approx 95 RPM's @ 12.0 VDC.
• Torque approx 85 in.lbs per motor assembly.
• Weight = 2.1 lbs (.95 kg) per assembly, 4,2 lbs (1.85 kg) per set.
• Load Capacity: Rated for up to 20 lbs (9.0 kg) of payload, in addition to the kit itself.
• Voltage requirements: 12 VDC nominal.
• Current requirements: 2.5 - 8.0+ amps (depending on terrain and load).
• Communication: Dual - Quadrature Encoder outputs (four digital inputs required for quadrature data).
• Dimensions: 6 in (15.24 cm) diameter wheel.
• Operating temperature range: +32 to +120 °F (0  to +49 °C).

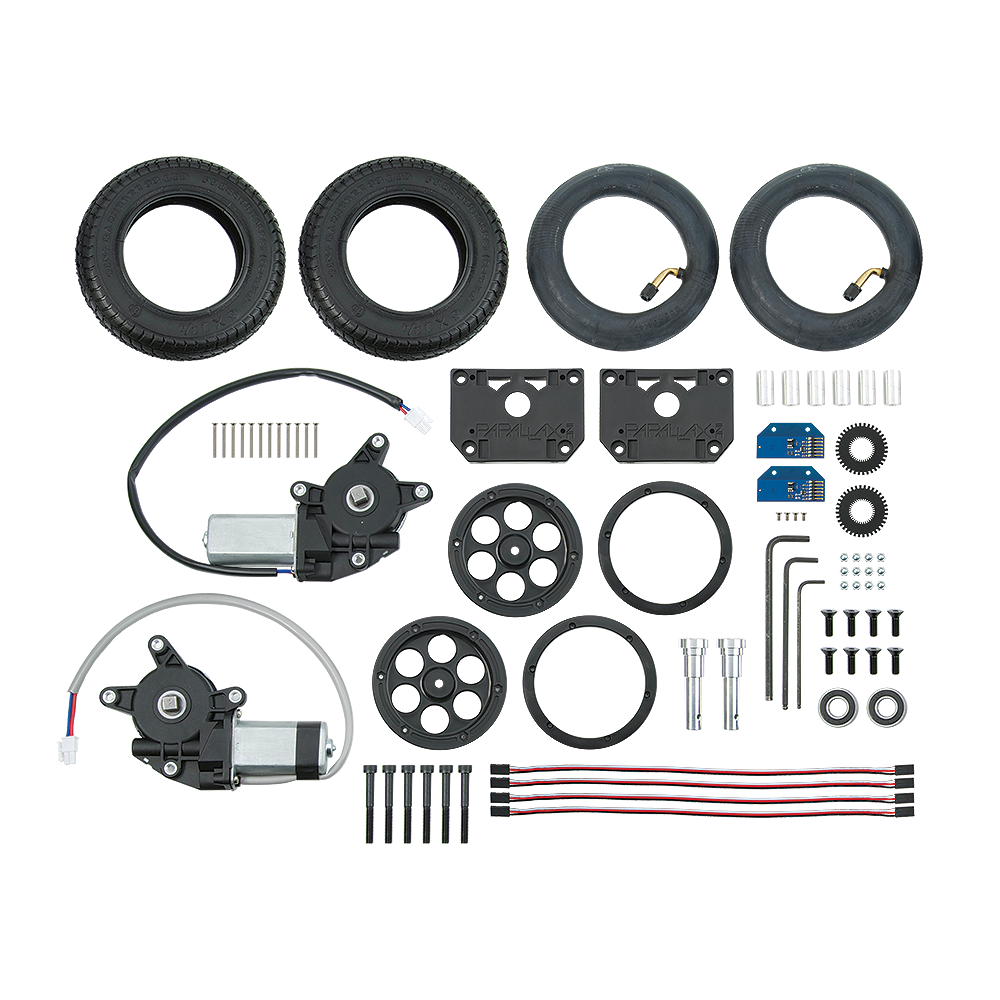

Kit Contents:

• (1)  - Motor, 12 VDC (left).
• (1)  - Motor, 12 VDC (right).
• (1)  - 36-position Quadrature Encoder Set (contains 2 encoder assemblies).
• (2)  - Robot Drive Axle 2.
• (2)  - Motor Bearing Block 2 -MP.
• (2)  - Robot Rim set - MP.
• (2)  - 1/8 x 1" Roll Pin.
• (12)  - Screw, #4-40x1", FH, SS.
• (12) -  #4-40 Acorn Nut.
• (6)  - Screw, M6,1 mm x 50 mm SH, Black.
• (2)  - Screw, #1/4-20x5/8",BH,SS.
• (6)  - Spacer 0.50" x 1", RND, AL.
• (2)  - Knobby Tire, 6" x 1-1/4" Rubber w/tube.
• (2)  - 0.5" ID x 1.125" OD Ball Bearing.
• (1)  - Hex Key, 5 mm.
• (1)  - Hex Key, 5/32".
