BASIC Stamp 1 Microcontroller Module
BASIC Stamp 1 Microcontroller ModuleBASIC Stamp 1 Microcontroller Module
BASIC Stamp 1 Microcontroller Module

BASIC Stamp 1 Microcontroller Module

Manufacturer: Parallax
Product Code: MCU-BASIC-Stamp-1_bs1-ic
Weight:0.25 lb
Reward Points:0
In Stock
Price: $28.99

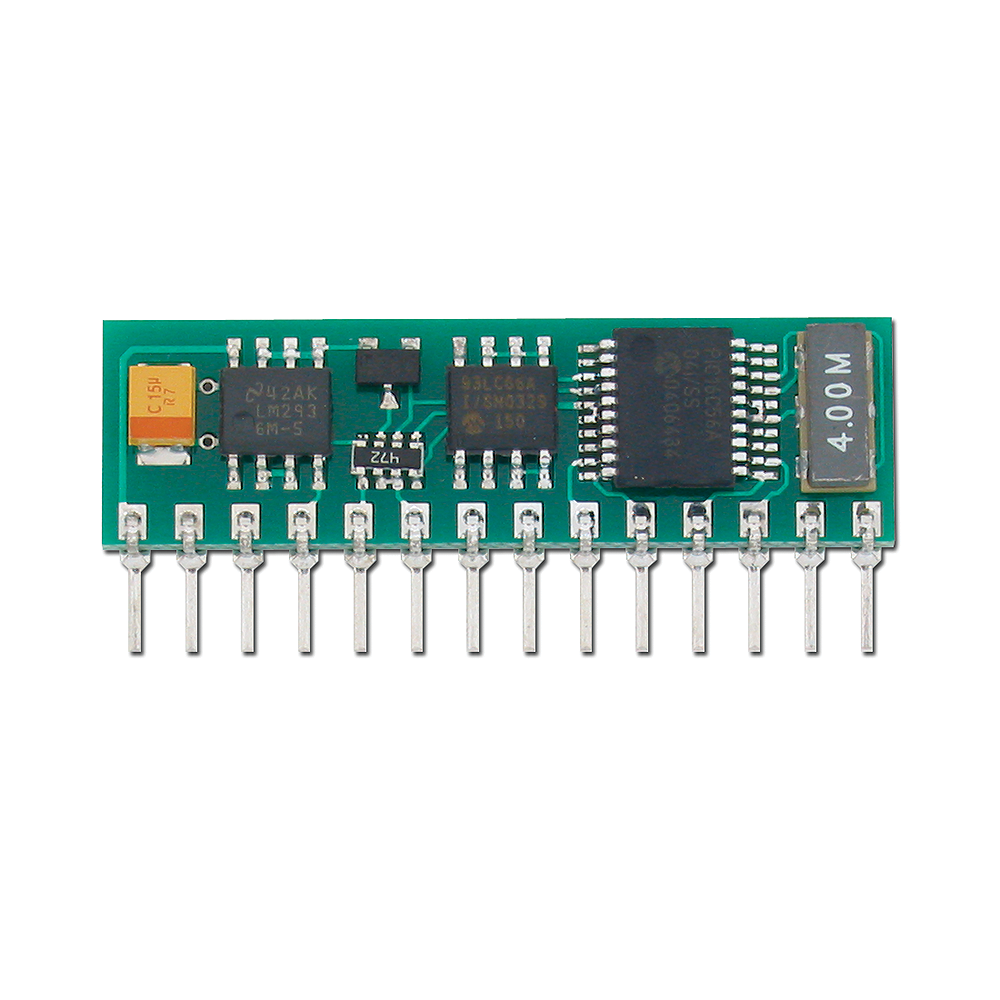

BASIC Stamp 1.

It's amazing what you can accomplish with this proven microcontroller and its simple PBASIC 1 language.  All vital components (processor, clock source, memory, power regulator) are provided on the BS1's tiny PCB; just connect power and go!  The BASIC Stamp® 1 (BS1-IC) is an ideal fit for applications that don't require the extra speed, I/O, and memory of the BASIC Stamp 2 series of microcontrollers.

Projects needing small, permanent soldering area for circuitry may benefit from combining the BS1-IC with the BASIC Stamp 1 Carrier Board or simply using the BASIC Stamp 1 Project Board.  For lower-cost OEM solutions, the processor (PBASIC1 interpreter) and other components are available for integration into your PCB.For customers that require a more powerful microcontroller, we highly recommend the BASIC Stamp 2 series controllers.  If true multi-processing is what is needed for your project or applications, then the Propeller microcontroller is the best option.

Key Features:

  • Small form factor fits into tight places.
  • Nonvolatile memory holds up to 80 instructions even without power.
  • BASIC commands are easy to learn and remember.
  • Industrial rated.


  • Processor Speed: 4 MHz; ~2,000 PBASIC instructions/sec.
  • Package: 14-pin SIP.
  • I/O pins: 8.
  • Voltage requirements: 5.5 to 15 VDC (Vin), or 5 VDC (Vdd).
  • Current requirements: 1 mA Run, 25 μA Sleep.
  • Communication: Serial.
  • Dimensions: 1.41 x 0.40 x 0.15 in (35.8 x 10.2 x 3.81 mm).
  • Operating temp range: -40 to +185 °F (-40 to +85 °C).
