BASIC Stamp 2px Microcontroller Module
BASIC Stamp 2px Microcontroller ModuleBASIC Stamp 2px Microcontroller Module
BASIC Stamp 2px Microcontroller Module

BASIC Stamp 2px Microcontroller Module

Manufacturer: Parallax
Product Code: MCU-BASIC-Stamp-2PX_bs2px24
Weight:0.25 lb
Reward Points:0
In Stock
Price: $78.99

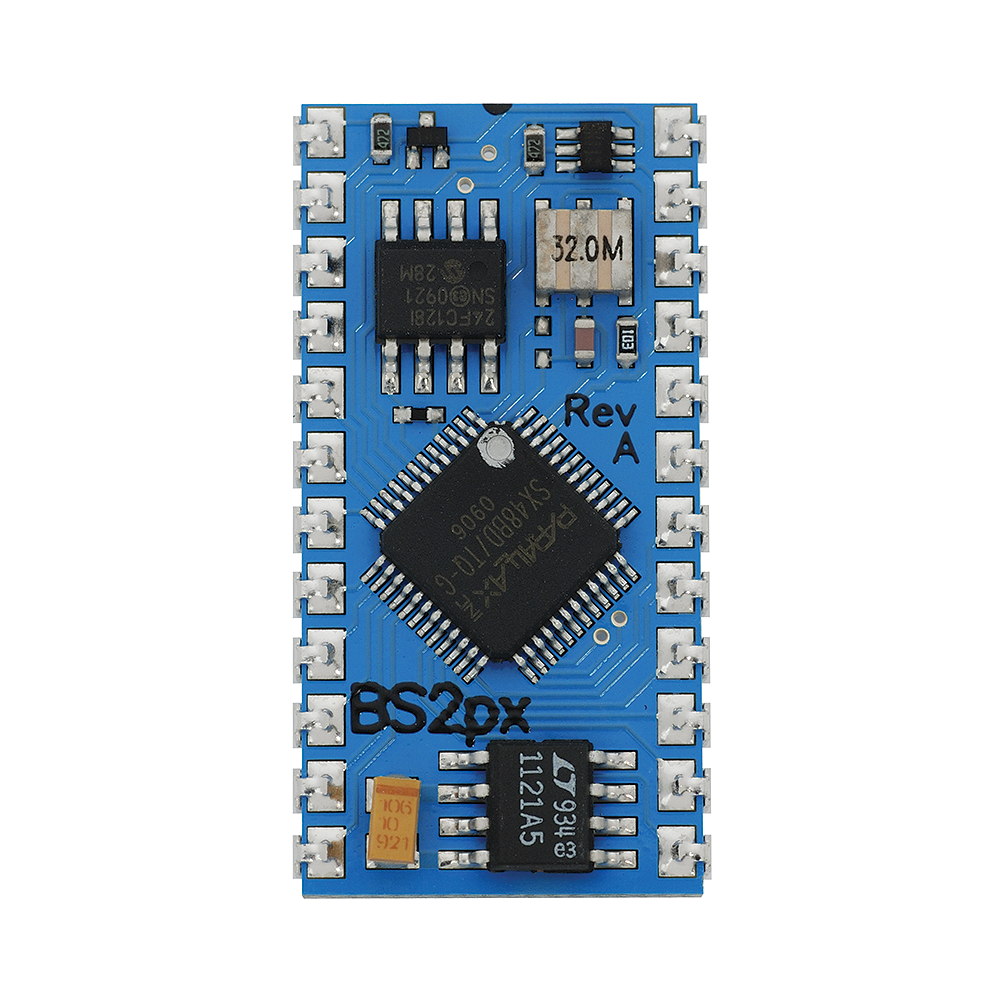

BASIC Stamp 2 PX24.

The BASIC Stamp 2px24 serves as the brains inside of electronics projects and applications that require a programmable microcontroller.  It is able to control and monitor timers, keypads, motors, sensors, switches, relays, lights, and more. Programming is performed in an easy-to-learn language called PBASIC.

All vital components (processor, clock source, memory, power regulator) are provided on the BS2px24's tiny PCB; just connect power and go!  Projects needing small, permanent soldering area for circuitry may benefit from combining the BS2px24 with theBASIC Stamp 2 Carrier Board or the Super Carrier Board.  For lower-cost OEM solutions, the processor (PBASIC2px24 interpreter) and other components are available for integration into your PCB.

The BS2px24 is useful for those that have previous experience with the BS2 and would like more speed or special I/O configuration functions.

For customers that require a more powerful, multi-processing microcontroller, we recommend the Propeller microcontroller.

Key Features:

  • Small form factor requires very little space.
  • Non-volitile memory holds up to 4,000 instructions even without power.
  • PBASIC commands are easy to learn and remember.
  • Comercial rated since Rev A.


  • Processor Speed: 32 MHz Turbo; ~19,000 PBASIC instructions/sec.
  • PBASIC Commands: 63.
  • Package: 24-pin DIP.
  • I/O pins: 16 + 2 dedicated serial.
  • RAM Size: 38 Bytes (12 I/O, 26 Variable).
  • Scratch Pad RAM: 128 bytes.
  • EEPROM (Program) Size: 8 x 2 KBytes; ~4,000 PBASIC instructions.
  • Voltage requirements: 5.5 to 12 VDC (Vin), or 5 VDC (Vdd).
  • Current requirements: 55 mA Run, 450 μA Sleep.
  • Source/Sink Current per I/O: 30 mA / 30 mA.
  • Source/Sink Current per unit: 60 mA / 60 mA per 8 I/O pins.
  • Communication: Serial (9600 baud for programming).
  • Dimensions: 1.20 x 0.63 x 0.15 in (30.0 x 16.0 x 3.81 mm).
  • Operating temp range: +32 to +158 °F (0 to +70 °C).
