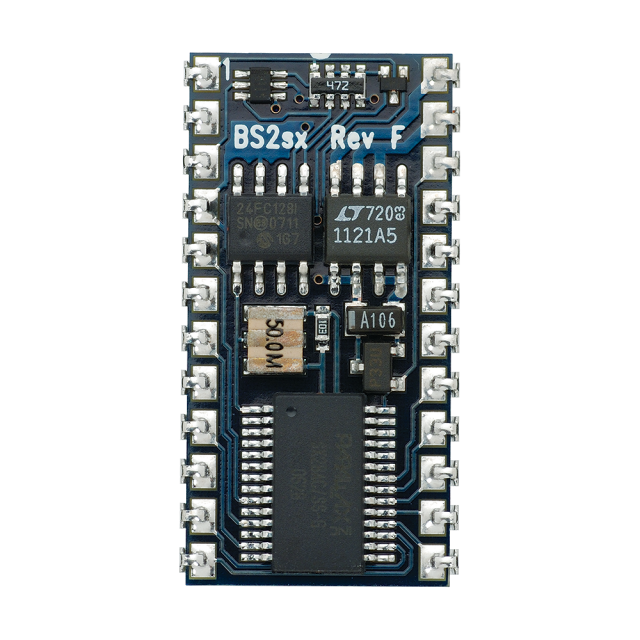

BASIC Stamp 2sx Microcontroller Module
BASIC Stamp 2sx Microcontroller ModuleBASIC Stamp 2sx Microcontroller Module
BASIC Stamp 2sx Microcontroller Module

BASIC Stamp 2sx Microcontroller Module

Manufacturer: Parallax
Product Code: MCU-BASIC-Stamp-2SX_bs2sx-ic
Weight:0.25 lb
Reward Points:0
In Stock
20
Price: $58.99

BASIC Stamp 2 SX.

The BASIC Stamp 2sx serves as the brains inside of electronics projects and applications that require a programmable microcontroller.  It is able to control and monitor timers, keypads, motors, sensors, switches, relays, lights, and more. Programming is performed in an easy-to-learn language called PBASIC.

All vital components (processor, clock source, memory, power regulator) are provided on the BS2sx's tiny PCB; just connect power and go!  Projects needing small, permanent soldering area for circuitry may benefit from combining the BS2sx-IC with theBASIC Stamp 2 Carrier Board or the Super Carrier Board.  For lower-cost OEM solutions, the processor (PBASIC2sx interpreter) and other components are available for integration into your PCB.

The BS2sx-IC is useful for those that have previous experience with the BS2 and would like more speed and program space or the use of Scratch Pad RAM. For customers that require a more powerful, multi-processing microcontroller, we recommend the Propeller microcontroller.


Key Features:

  • Small form factor requires very little space.
  • Non-volitile memory holds up to 4,000 instructions even without power.
  • PBASIC commands are easy to learn and remember.
  • Industrial rated since Rev F.


Details:

  • Processor Speed: 50 MHz; ~10,000 PBASIC instructions/sec.
  • PBASIC Commands: 45.
  • Package: 24-pin DIP.
  • I/O pins: 16 + 2 dedicated serial.
  • RAM Size: 32 Bytes (6 I/O, 26 Variable).
  • Scratch Pad RAM: 64 bytes.
  • EEPROM (Program) Size: 8 x 2 KBytes; ~4,000 PBASIC instructions.
  • Voltage requirements: 5.5 to 12 VDC (Vin), or 5 VDC (Vdd).
  • Current requirements: 60 mA Run, 500 μA Sleep.
  • Source/Sink Current per I/O: 30 mA / 30 mA.
  • Source/Sink Current per unit: 60 mA / 60 mA per 8 I/O pins.
  • Communication: Serial (9600 baud for programming).
  • Dimensions: 1.20 x 0.63 x 0.15 in (30.0 x 16.0 x 3.81 mm).
  • Operating temp range: -40 to +185 °F (-40 to +85 °C).
