XBee 900HP Module (XBP9B-DMST-002)
XBee 900HP Module (XBP9B-DMST-002)
XBee 900HP Module (XBP9B-DMST-002)XBee 900HP Module (XBP9B-DMST-002)
XBee 900HP Module (XBP9B-DMST-002)XBee 900HP Module (XBP9B-DMST-002)

XBee 900HP Module (XBP9B-DMST-002)

Manufacturer: Parallax
Product Code: WiFi-XBee-900HP_32411
Weight:0.25 lb
Reward Points:0
In Stock
17
Price: $38.99

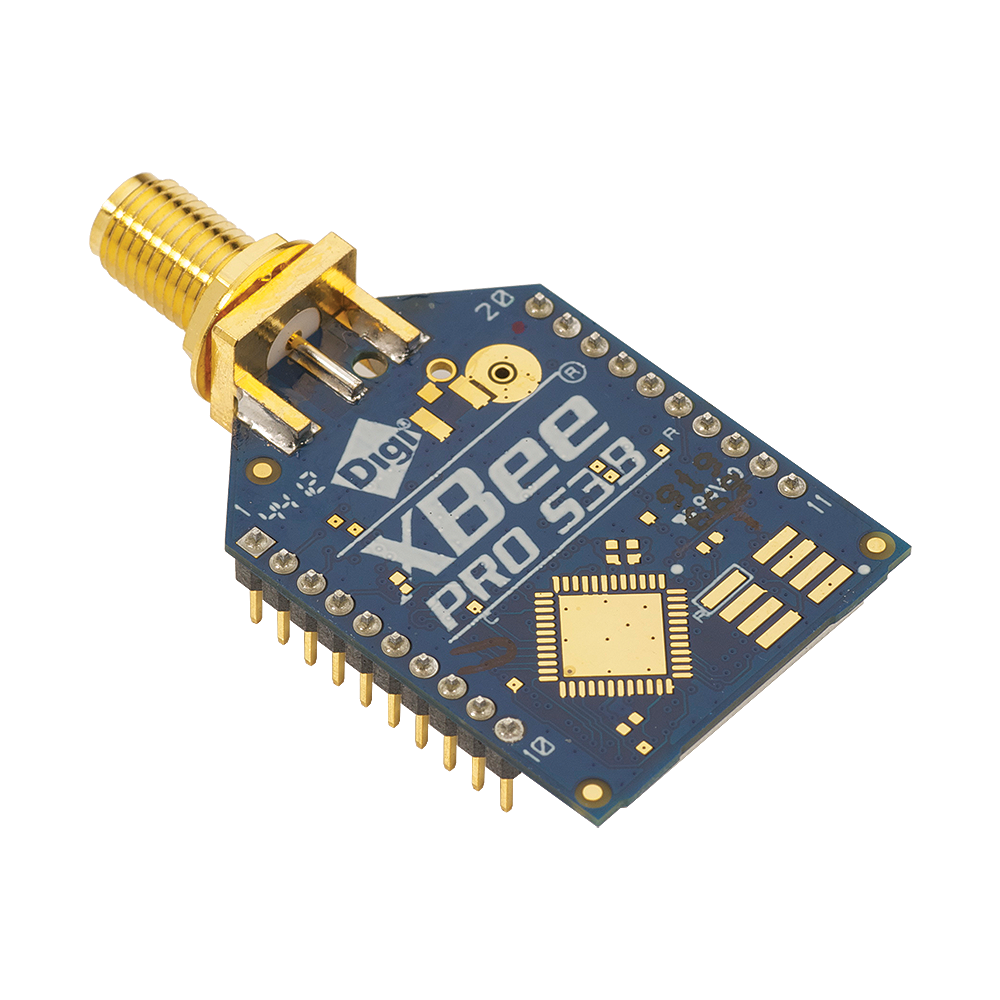

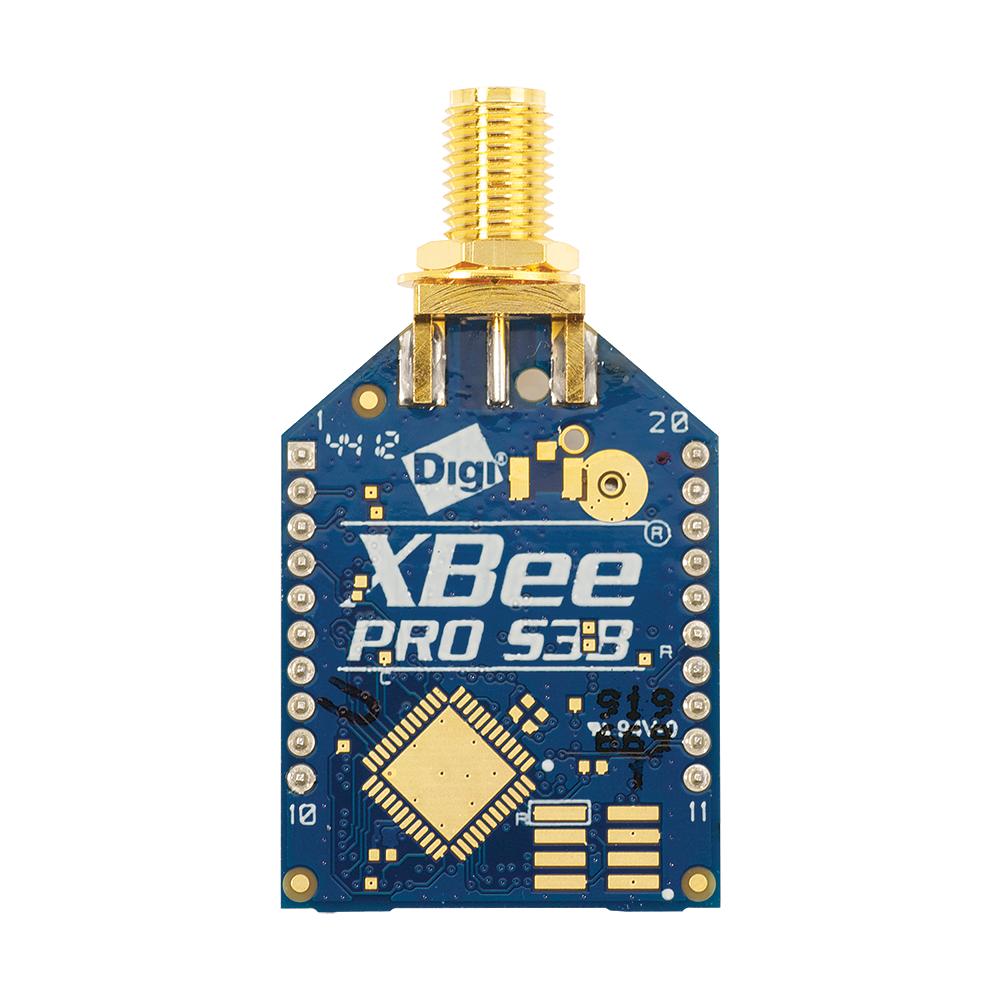

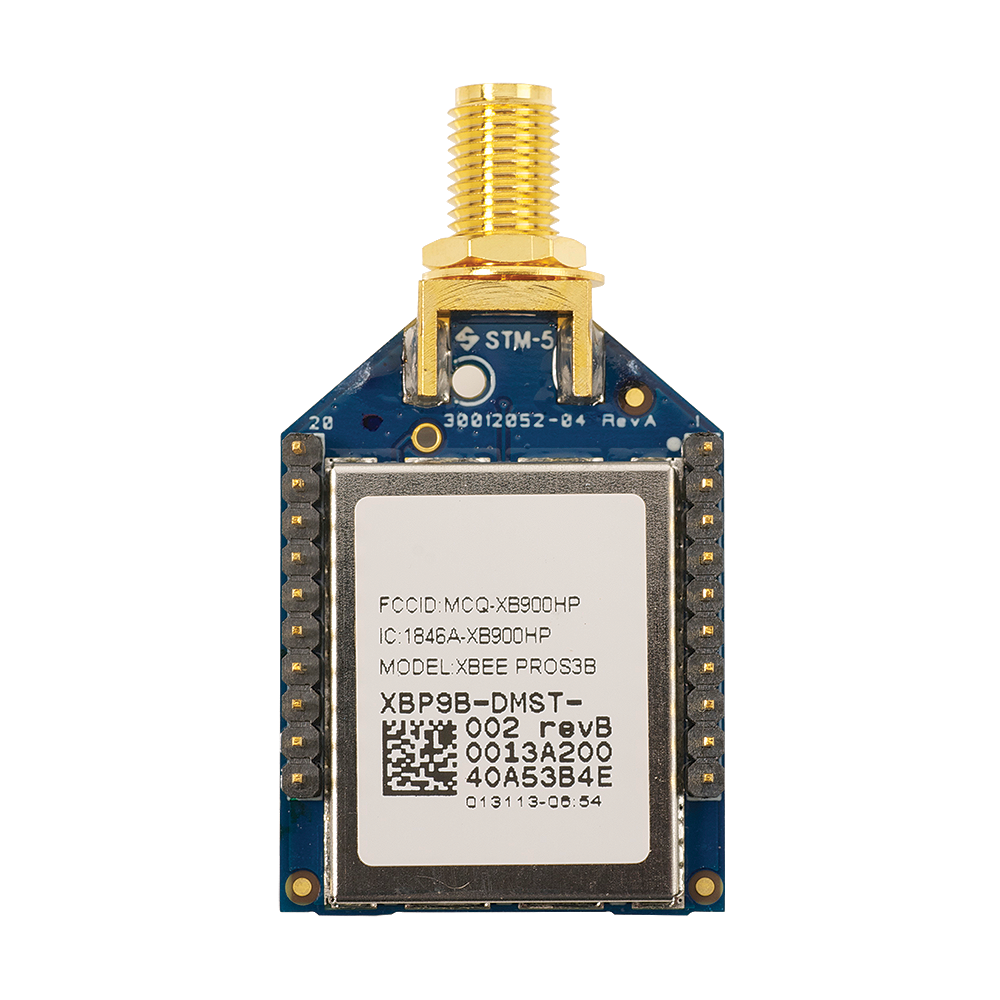

XBee 900HP Module (XBP9B-DMST-002).XBee 900HP Module (XBP9B-DMST-002).XBee 900HP Module (XBP9B-DMST-002) - bottom view.

XBee-PRO 900HP embedded modules provide best-in-class range wireless connectivity to devices. They take advantage of the DigiMesh® networking protocol, featuring dense network operation and support for sleeping routers. Range is up to 9 miles with a dipole antenna and up to 28 miles using a high-gain antenna (not sold by Parallax).

With a data rate of up to 200 Kbps, these modules are ideal for extended-range applications requiring increased data throughput. The XBee-PRO 900HP requires no programming and can be configured easily using Digi’s free X-CTU software or via a simplified AT command set. XBee modules are pre-certified for use in multiple countries, further reducing development costs and time to market.

XBee® modules are easy to use, share a common hardware footprint and are available in a variety of different protocols, enabling users to substitute one XBee for another with minimal development time and risk.


Key Features:

  • Superior outdoor line of sight range up to 28 miles (45 km), 9 miles (14) using a dipole antenna.
  • Indoor range up to 2000 feet (610 m).
  • RF Data rate up to 200 Kbps.


Application Ideas:

  • Remote Industrial Control and Monitoring.
  • Long range remote control.
  • Wireless data acquisition.


Details:

  • 15 I/O lines.
  • 4 10-bit analog inputs.
  • 64 channels available.
  • 128-bit AES Encryption.
  • Voltage requirements: 2.1 to 3.6 VDC (reduced performance below 3.0V).
  • Current requirements: ~215 mA (transmit), ~29 mA (receive), ~2.5 uA (sleep).
  • Communication: CMOS UART, SPI @ ~3.3V.
  • Dimensions: 1.29" L x 0.96" W x 0.16" H (32.94 x 24.38 x 4.06 mm).
  • Operating temperature range: -40 to +185 °F (-40  to +85 °C).


NOTES:

  • This module requires an antenna with a male RPSMA connector.
  • Because XBee modules have 2 mm pin spacing, we recommend one of our adapter boards for each module. Our adapter boards provide several advantages to the XBee modules such breadboard-friendly standard 0.1 inch pin spacing, mounting holes, and easy-to-solder connections. Even if you are communicating point-to-point without a PC, we still recommend that you always have at least one XBee USB Adapter Board so you can easily configure and test each XBee module prior to putting it in a point-to-point application.
