USB2SER Development Tool

Manufacturer: Parallax
Product Code: USB2SER-01_28024
Weight:0.25 lb
Reward Points:0
In Stock
137
Price: $13.99

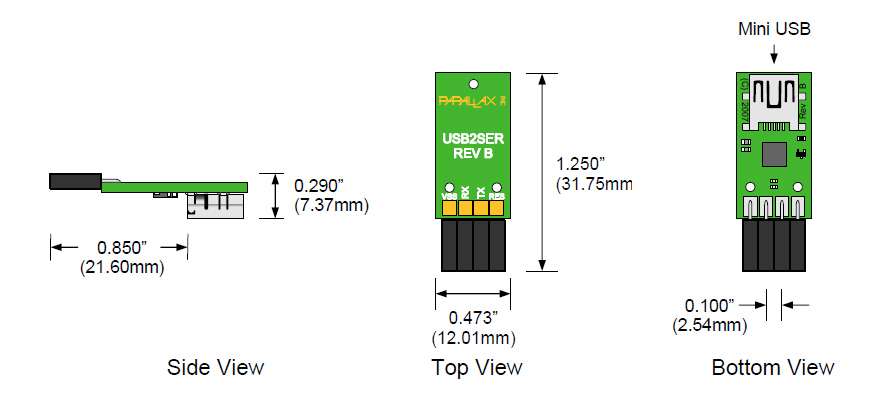

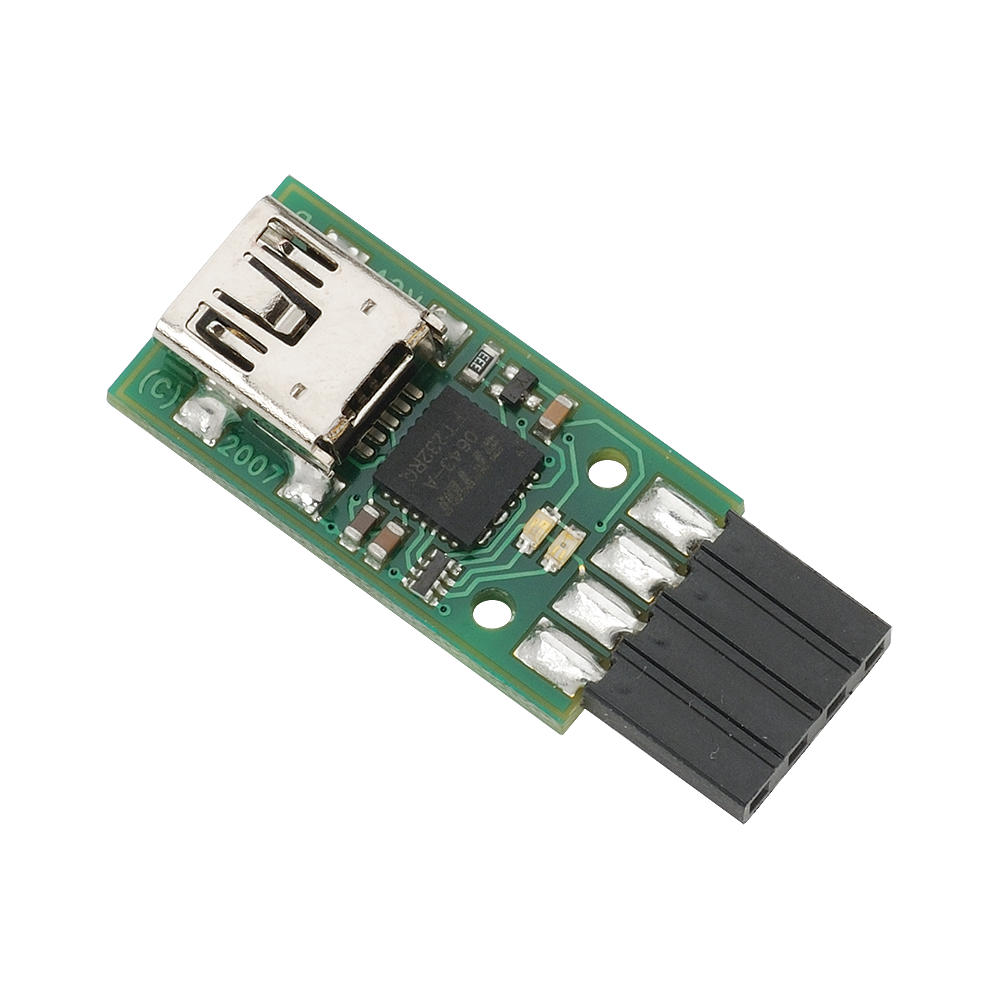

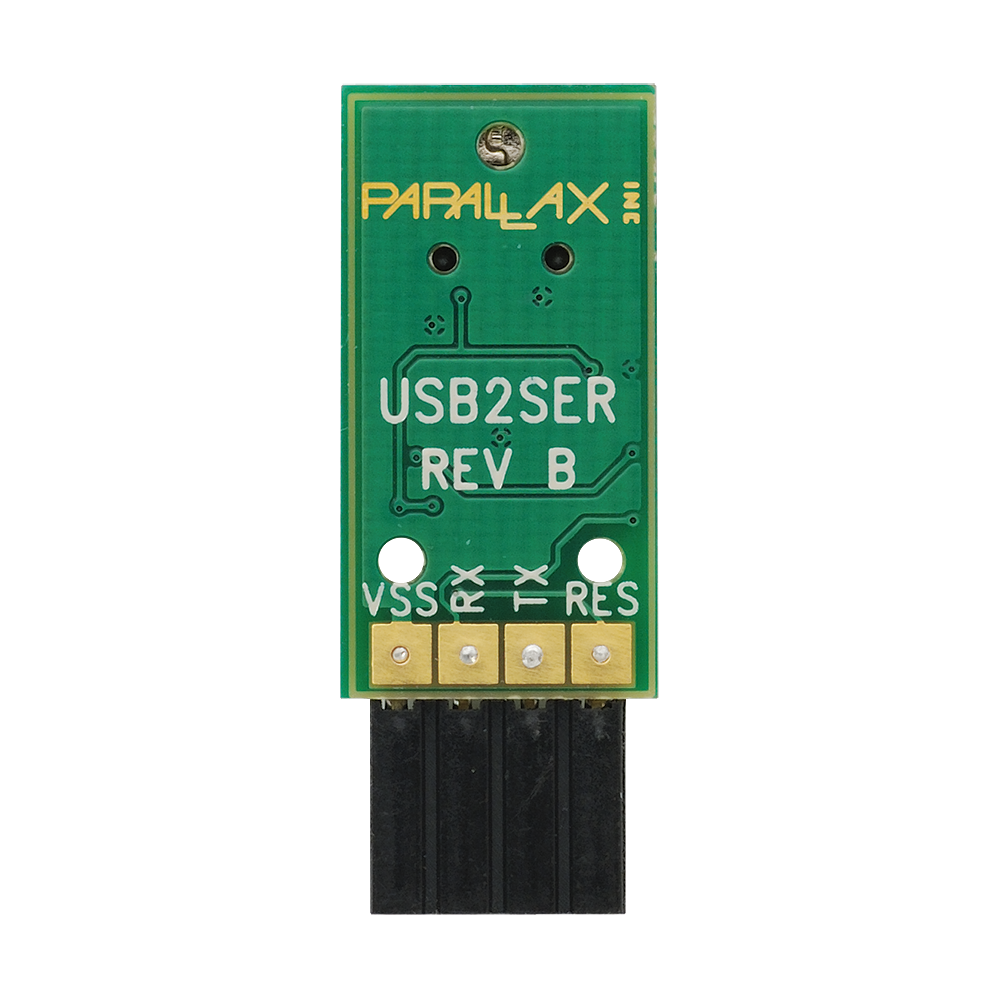

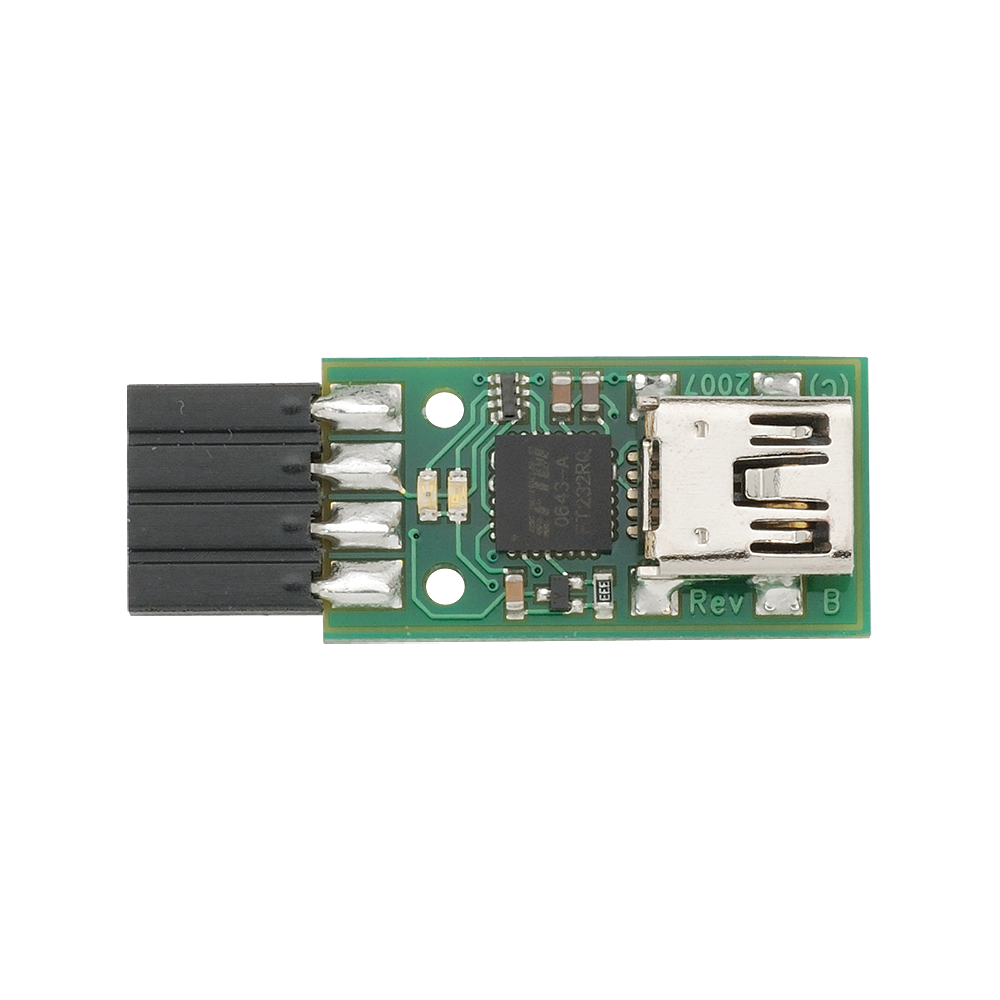

USB2SER Development Tool - View.USB2SER Development Tool - View.USB2SER Development Tool - View.USB2SER Development Tool - Dimensions.USB2SER Development Tool - Schematic.

The USB2SER provides an easy way to interface a PC to a microcontroller. It bridges the PC’s USB port to logic-level RX and TX signals that can connect directly to a microcontroller's I/O pins. To the PC, the USB2SER appears as a virtual COM port. To the microcontroller, the USB2SER appears as a true 5 V serial connection consisting of a RX signal, a TX signal, and a low-pulsing RESET signal controlled by ‘DTR’.


Key Features:

  • USB power, no external supply required.
  • Four-pin female SIP connector with 0.1" spacing to interface to the microcontroller circuit.
  • Red and blue LEDs to indicate TX and RX activity.


Details:

  • Debugging embedded microcontrollers through a UART.
  • Supports standard baud rates and custom rates, 300 baud to 3 megabaud.
  • 4.5 to 5.5 VDC.
  • 15 mA typical.
  • Full speed USB, full duplex 5 V non-inverted TTL serial from 300 baud to 57.6 kilobaud.
  • 1.25 x 0.47 x 0.29 in (31.8 x 12 x 7.4 mm).
  • -40° to +185° F (-40° to +85° C).
