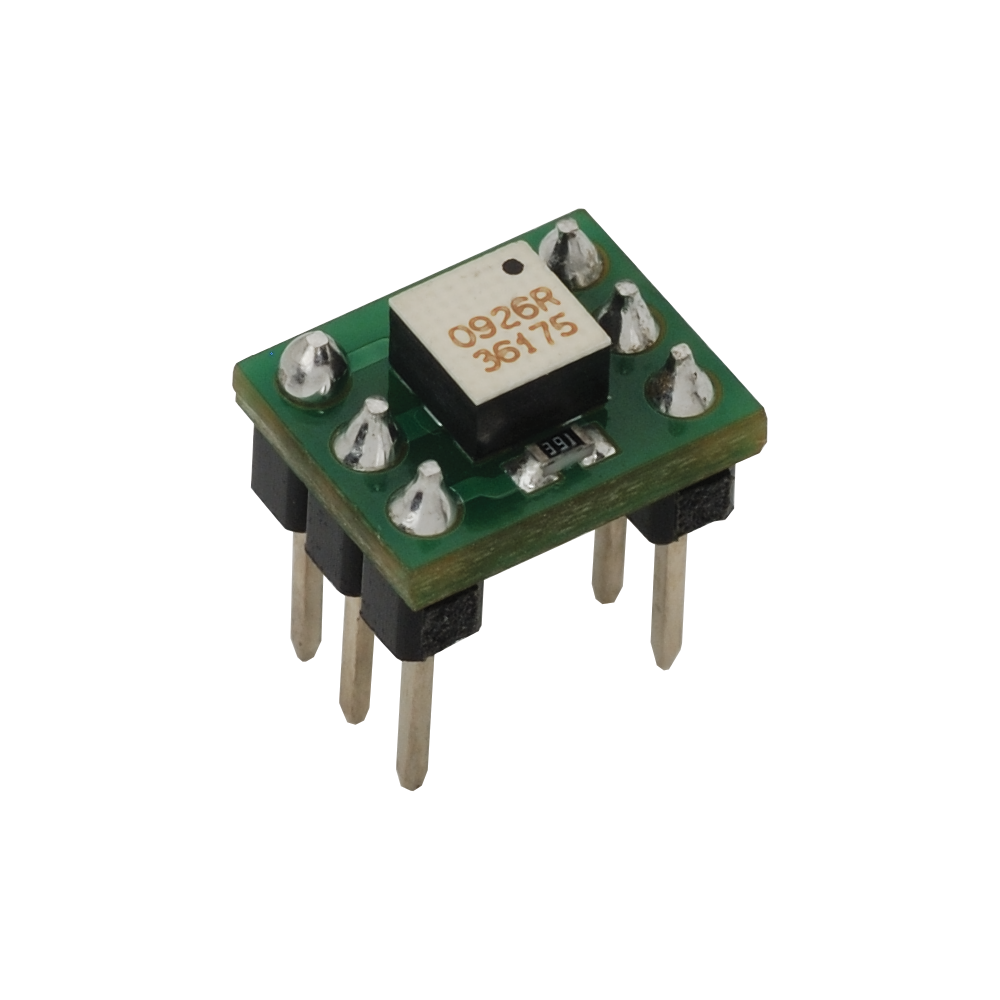

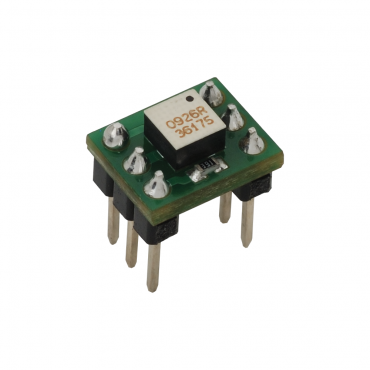

4-Directional Tilt Sensor
4-Directional Tilt Sensor4-Directional Tilt Sensor
4-Directional Tilt Sensor

4-Directional Tilt Sensor

Manufacturer: Parallax
Product Code: Sensors-4-DirTilt_28036
Weight:0.25 lb
Reward Points:0
In Stock
Price: $9.99

4-Directional Tilt Sensor.

The 4-Directional Tilt Sensor uses an optical system to provide positional feedback in four directions. This type of sensor is commonly used in many smart phones and digital cameras as a cheaper means to adjust the screen display when the device is rotated.

Key Features:

  • Positional feedback in four directions.
  • Easy communication with any microcontroller.
  • Small 6-pin package for breadboard-friendly applications.

Application Ideas:

  • Rotating display adjustment.
  • Robotic movement.
  • Tilt-sensing for remote controls.
  • Alarm systems.


  • Voltage requirements: 3 to 5.5 VDC.
  • Communication: 2-pin high/low output for four sensor states.
  • Dimensions: 0.42 x 0.32 x 0.49 in (1.07 x 0.81 x 1.24 cm).
  • Operating temp range: 32 to 122 °F (0 to 50 °C).

NOTES: Maximum output signal voltage approaches power supply voltage, so use the same voltage level for microcontroller and sensor supply.
