2 x 16 Parallel LCD
2 x 16 Parallel LCD
2 x 16 Parallel LCD2 x 16 Parallel LCD
2 x 16 Parallel LCD2 x 16 Parallel LCD

2 x 16 Parallel LCD

Manufacturer: Generic
Product Code: Disp-2x16-LCD-Par_603-00006
Weight:0.50 lb
Reward Points:0
Out Of Stock
Price: $29.99

Parallax Parallel Display 2x16.Parallax Parallel Display 2x16.

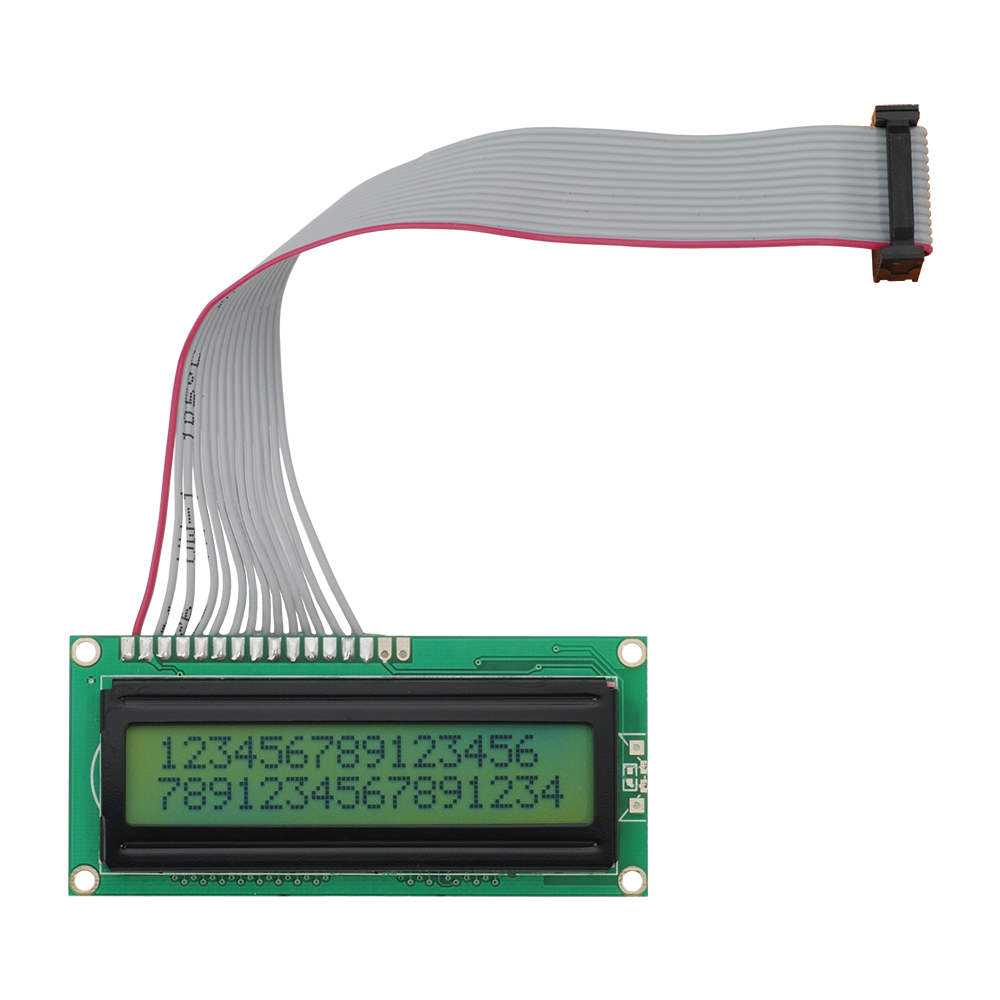

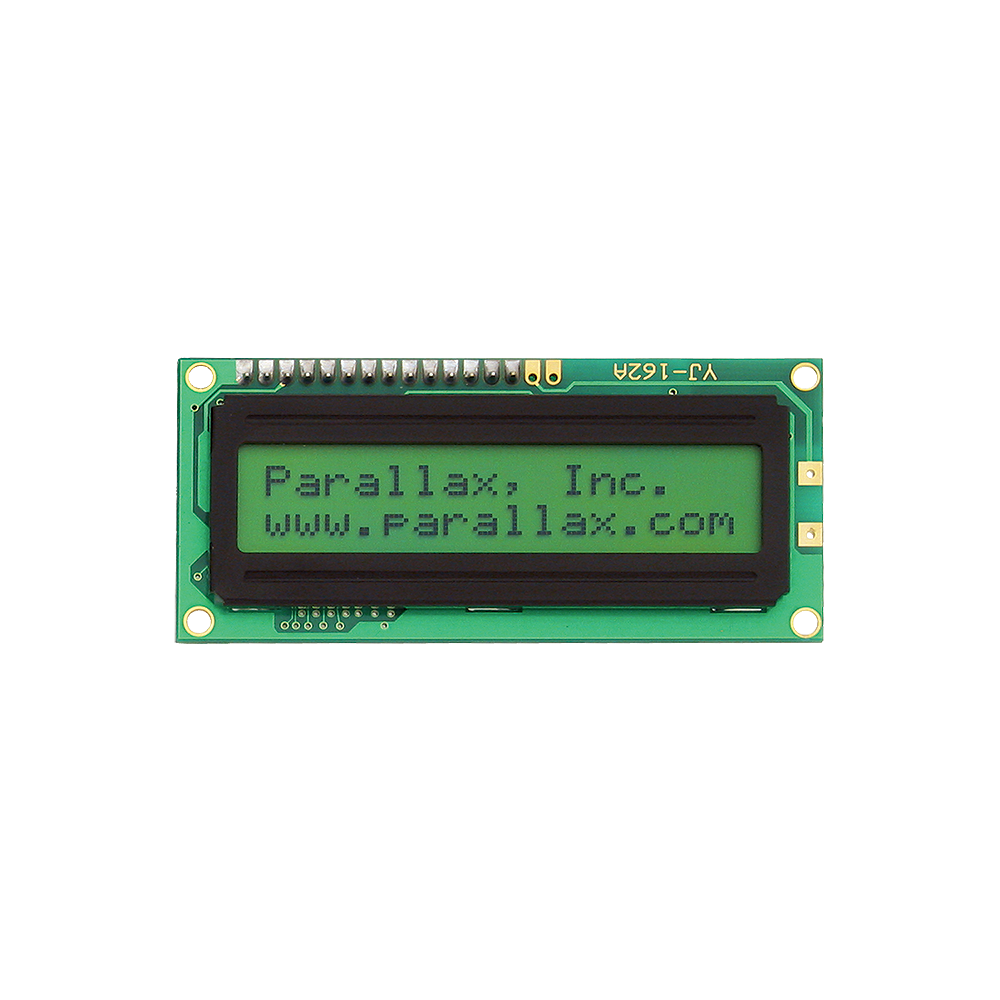

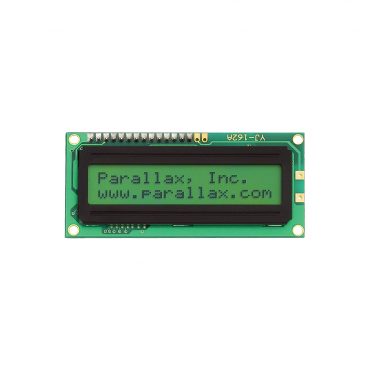

The 2 x 16 Parallel LCD can be controlled via a 4-bit or 8-bit parallel interface. It allows you to display text, numeral data and up to 8 custom created characters. The LCD uses the Hitachi HD44780 or equivalent LCD controller chipset.  It goes well with the Parallax Professional Development Board, but may also be hooked up manually via its 14-pin connector.

Key Features:

  • BS2p series microcontrollers have LCDIN/LCDOUT commands making it easy to control this display.
  • Displays text, numbers, and custom characters.
  • 6-inch ribbon cable with 14-pin connector.

Application Ideas:

  • Project display terminal.
  • DIY name badge.


  • Connector: Ribbon cable with 14-pin connector (2x7).
  • Voltage requirements: 5 VDC.
  • Current requirements.
  • Communication: 4/8-bit parallel interface.
  • Dimensions: ~3-1/4" W x ~1-3/4" H x ~1/4" D (~85mm W x ~45mm H x ~6mm D)*.
  • Operating temp range: -32°F to 158°F (0°C to 70°C).

NOTES: Style and size may vary.
