Sensirion Temperature/Humidity Sensor
Sensirion Temperature/Humidity SensorSensirion Temperature/Humidity Sensor
Sensirion Temperature/Humidity Sensor

Sensirion Temperature/Humidity Sensor

Manufacturer: Parallax
Product Code: Sensors-Sensirion-Temp-Hum_28018
Weight:0.25 lb
Reward Points:0
In Stock
Price: $42.99

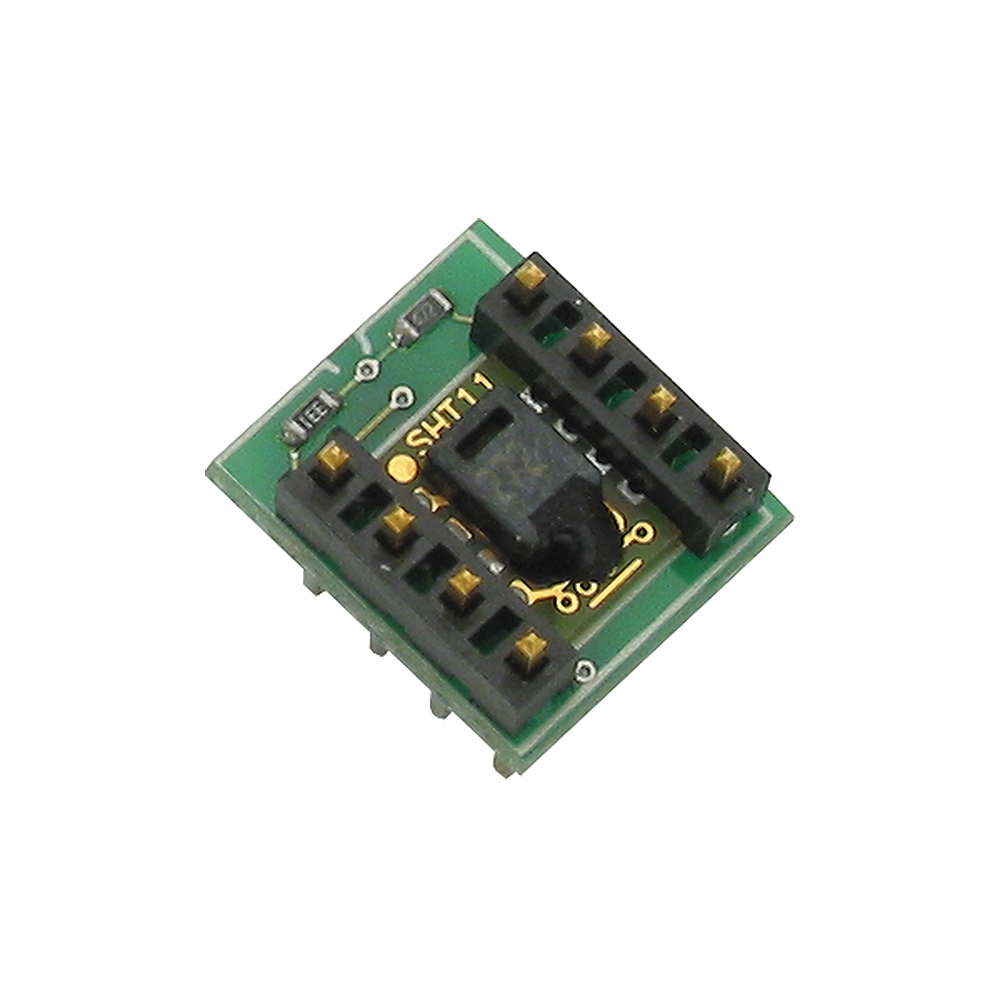

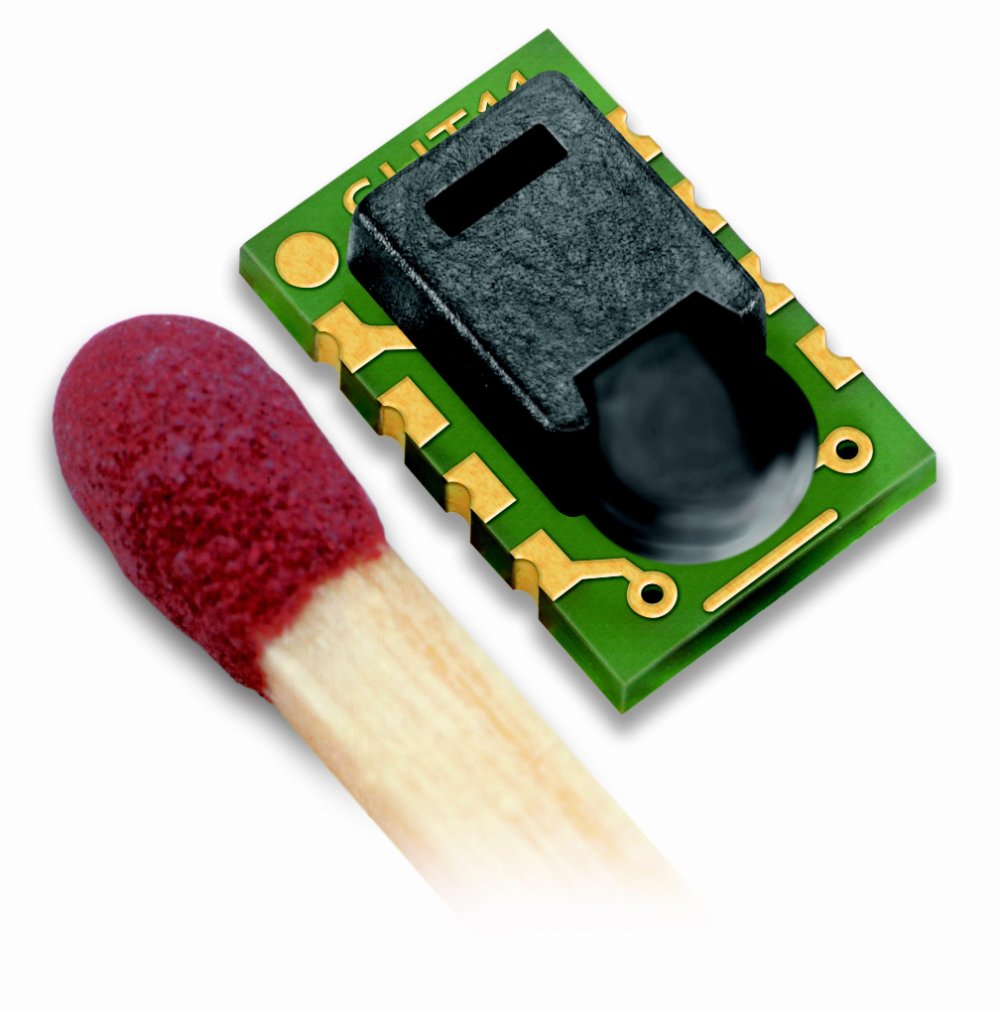

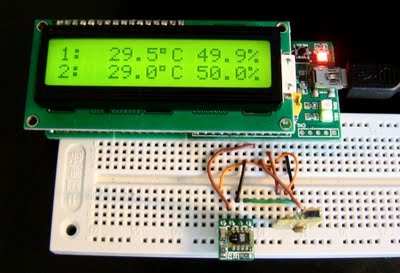

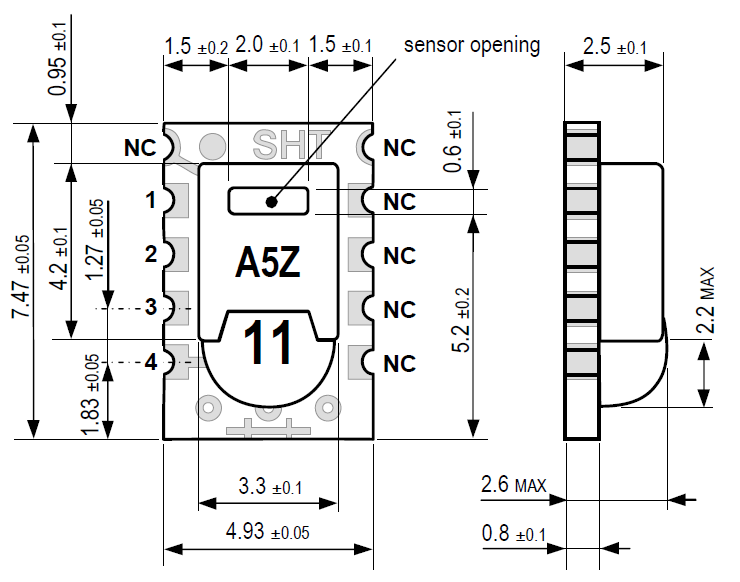

Sensirion Temperature and Humidity Sensor.Sensirion Temperature and Humidity Sensor Detail.Sensirion Temperature and Humidity Sensor Application.Sensirion Temperature and Humidity Sensor Dimensions.

Humidity is very difficult to measure and requires external circuitry and many calculations by most other sensors available. The Sensirion SHT1x is a smart sensor that comes to you ready to be integrated into your project with your microcontroller.  With the onboard analog to digital hardware, and the factory calibration, all your microcontroller has to do is read out the temperature and humidity values through the two-wire digital serial interface.  This sensor is excellent for commercial or home-based projects that require a high degree of resolution.

Key Features:

  • Provides a fully calibrated, digital output so you can plug it right in and get measuring!
  • Measures temperature with a resolution of 0.01 degrees C, and within +/- 2 degrees C accuracy.
  • Measures realtive humidity with a resolution of 0.03%, and within +/- 3.5% accuracy.
  • Low power consumption (typically 30uW).

Application Ideas:

  • Weather Stations.
  • Marine Surveying Equipment.
  • Weather Balloons.


  • Power Requirements: 2.4-5.5 VDC.
  • Communication: Two-wire Serial.
  • Dimensions: 0.43 x 0.49 in (11 x 12.5 mm).
  • Operating temp range: -40 to +254.9 °F (-40 to +123.8 °C).
