Trackball Module
Trackball ModuleTrackball Module
Trackball Module

Trackball Module

Manufacturer: Parallax
Product Code: Dev-Trackball-01_27908
Weight:0.25 lb
Reward Points:0
Out Of Stock
Price: $9.99

Trackball Module.

This product is only available for a limited time while supplies last.

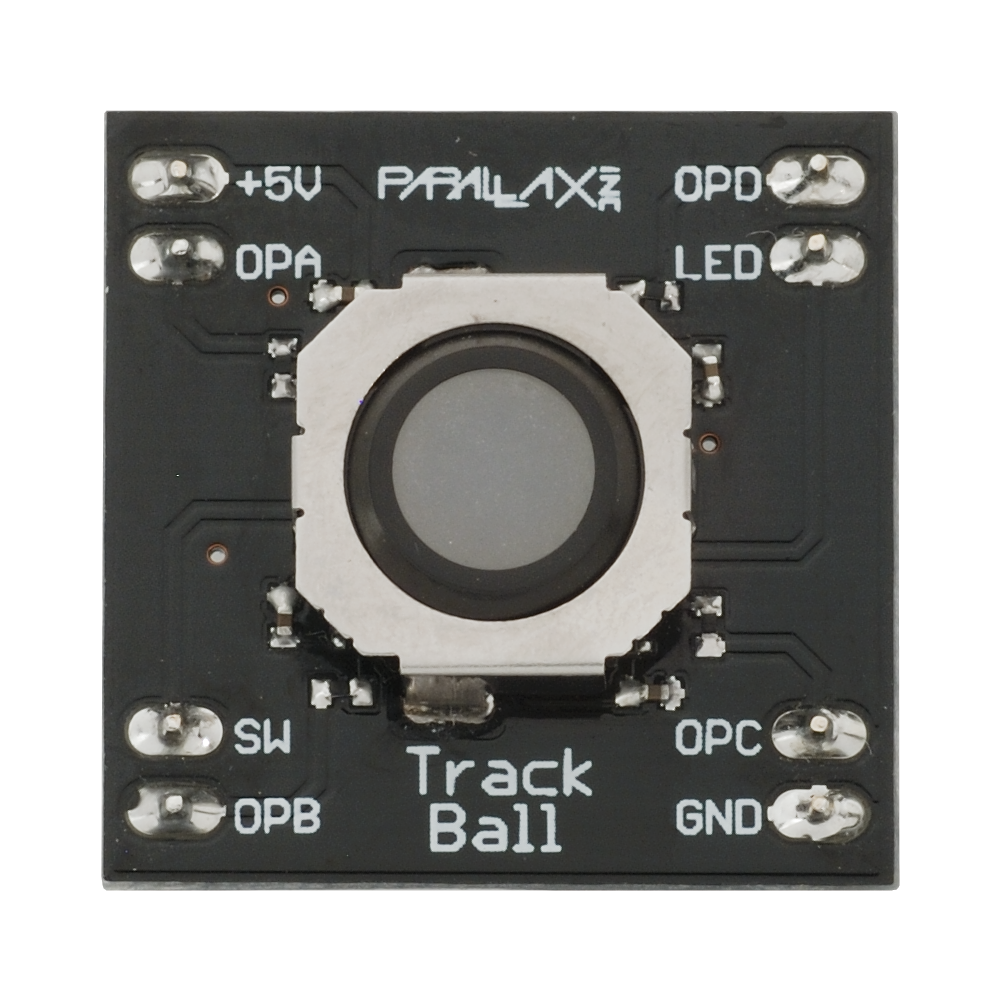

Add a fun human interface component to your Propeller projects with the Trackball Module from Parallax! Similar to the trackball found on many smart phones, this sensor is easily portable and can be used to replace a mouse in many applications. The Trackball Module comes with a built in center select switch and a red LED which can be programmed to light up the trackball when desired.

Key Features:

  • Built-in Center select switch and red LED.
  • Detect movement in the up, down, left, right and diagonal directions.
  • 8-pin DIP module is ready for breadboard or through-hole projects.
  • Built-in 1 kΩ series resistors for compatibility with the Propeller microcontroller and other 3.3 V devices.

Application Ideas:

  • Mouse replacement.
  • Video game input.


  • Power requirements: 5 VDC.
  • Communication: Four-pin variable-frequency binary signaling output (for trackball).
  • Dimensions: 1.0 x 1.0 x 0.67 in (25.4 x 25.4 x 17.08 mm).
  • Operating temp range: +32 to +158°F (0 to +70°C).
