LM34 Temperature Sensor
LM34 Temperature SensorLM34 Temperature Sensor
LM34 Temperature Sensor

LM34 Temperature Sensor

Manufacturer: Parallax
Product Code: Sensors-LM34-Temp_604-00011
Weight:0.25 lb
Reward Points:0
In Stock
20
Price: $2.99

LM34 Temperature Sensor.

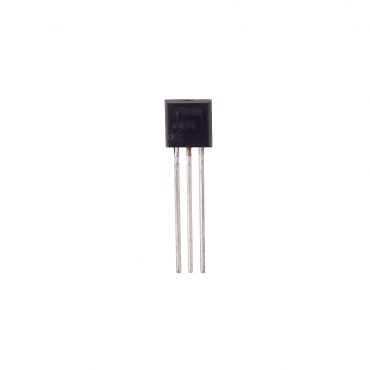

The LM34 is a precision Fahrenheit temperature sensor in a standard TO-92 package suitable for remote applications or direct PCB mounting.  The LM34 has a wide operating voltage range of 5 to 30 volts DC and a temperature range of +32° to +212°F.


Key Features:

  • Calibrated directly in degrees Fahrenheit.
  • Linear +10.0 mV/°F scale factor.
  • 1.0°F accuracy guaranteed (at +77°F).
  • Rated for full +32° to +212°F range.
  • Suitable for remote applications.
  • Low cost due to wafer-level trimming.
  • Operates from 5 to 30 volts.
  • Less than 90 μA current drain.
  • Low self-heating, 0.18°F in still air.
  • Nonlinearity only ±0.5°F typical.
  • Low-impedance output, 0.4 for 1 mA load.


Details:

  • Operates from 5 to 30 volts.
  • Less than 90 μA current drain.
  • Low self-heating, 0.18°F in still air.
  • Nonlinearity only ±0.5°F typical.
  • Low-impedance output, 0.4 for 1 mA load.
  • Power requirements: 5 to 30 VDC.
  • Communication: Interface Analog.
  • Dimensions: 0.02 x 0.56 x 0.164 in (5.2 x 14.2 x 4.2 mm).
  • Operating temp range: +32 to +212 °F (0 to +100 °C).
