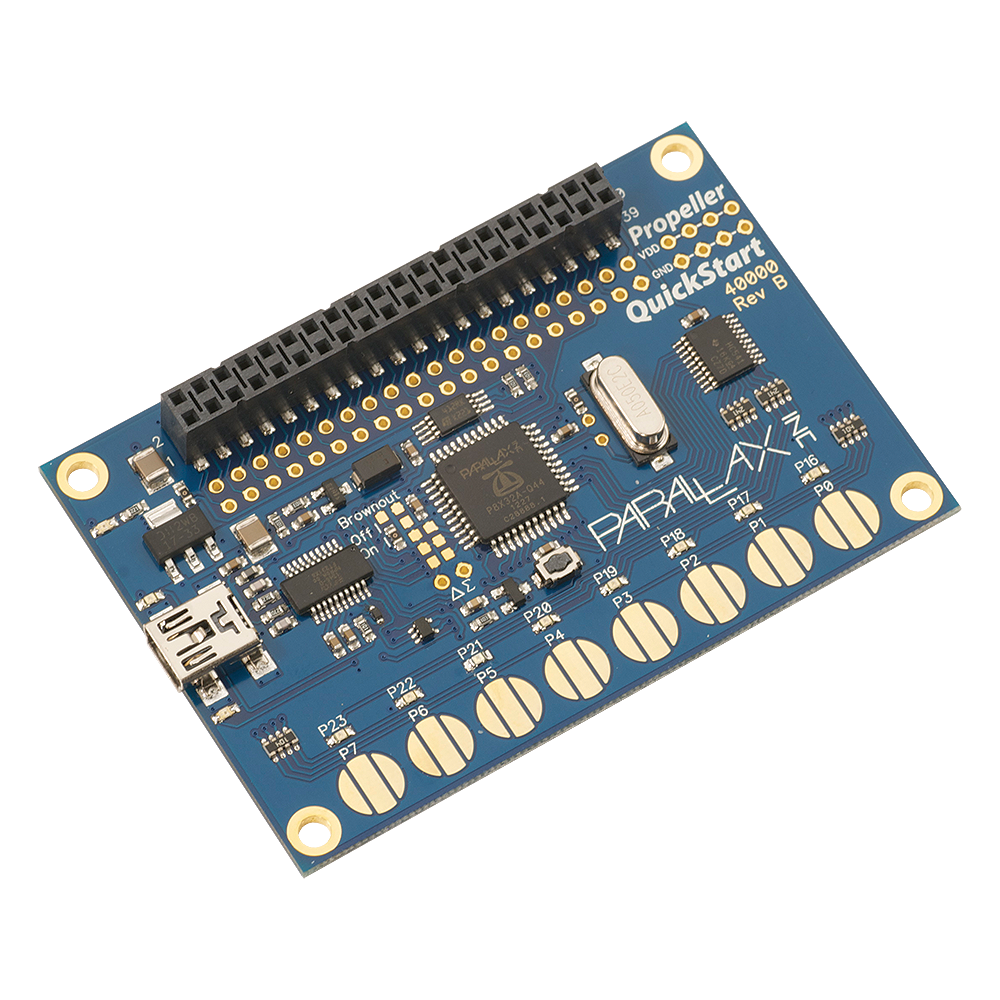

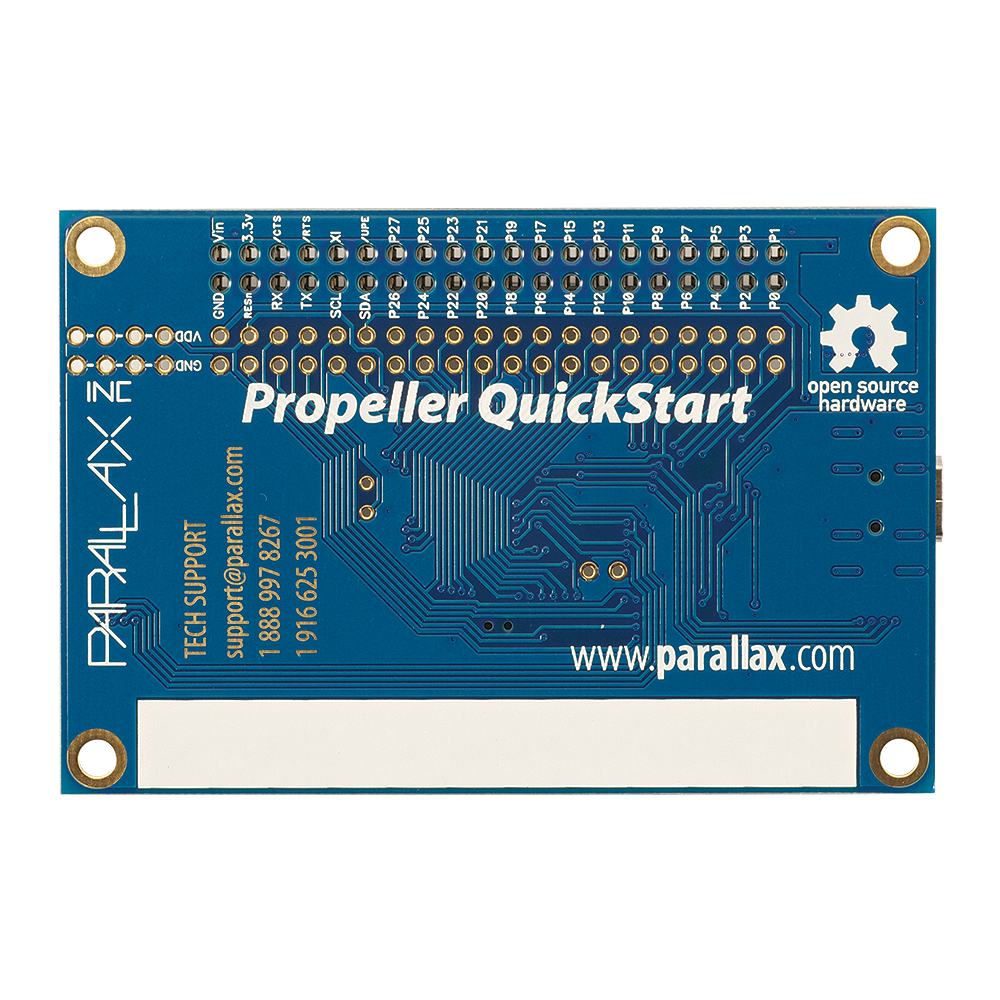

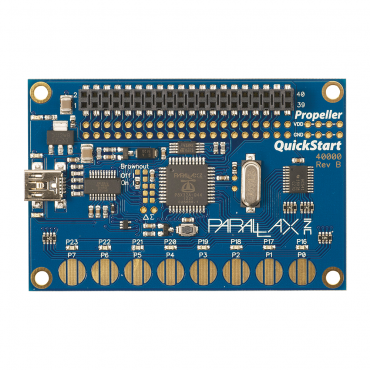

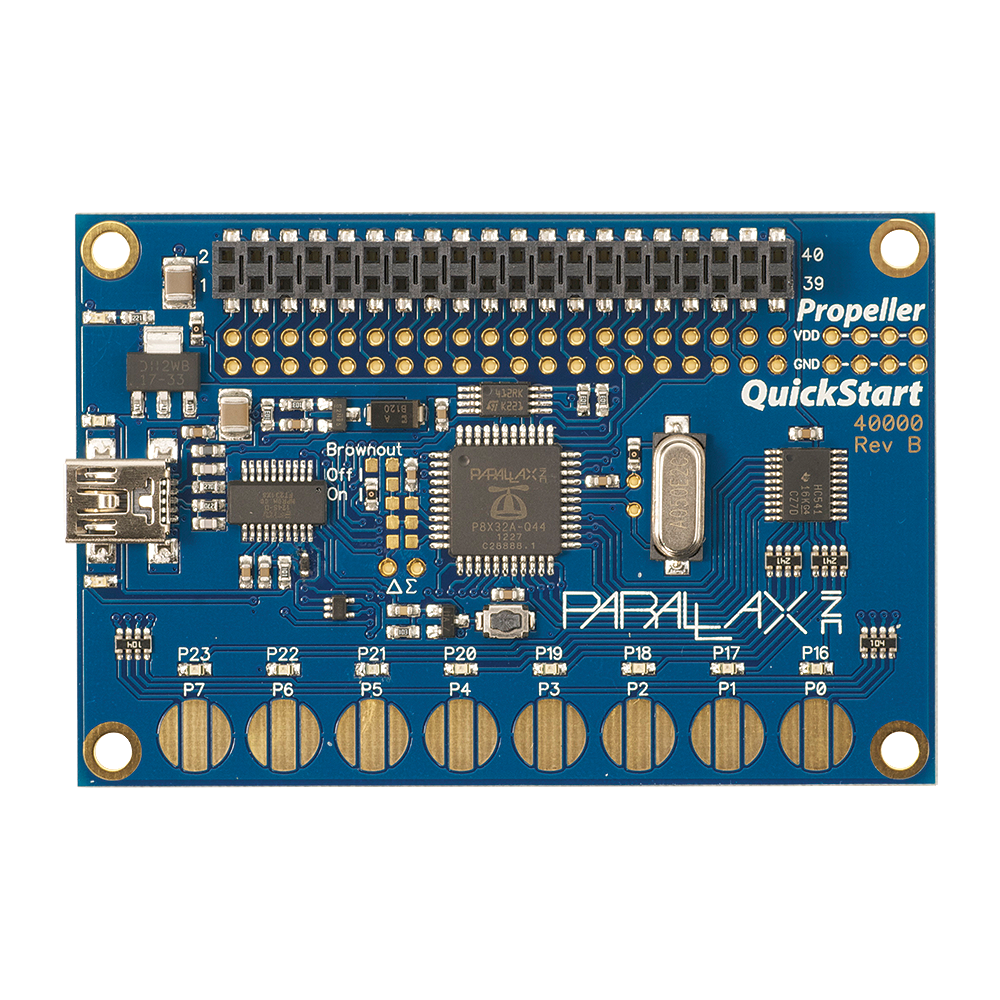

P8X32A Propeller QuickStart.P8X32A Propeller QuickStart.P8X32A Propeller QuickStart - botttom view.

The P8X32A QuickStart is a simple and accessible development platform for the P8X32A Propeller microcontroller.

The QuickStart is an evaluation board for the Propeller. As an open-source reference design the QuickStart board provides basic Propeller circuitry. Developers may use our PCB layout files as their own to speed their project towards completion. As a project board the QuickStart is fully expandable and provides unimpeded access to all I/O pins through an expansion header but includes some button inputs and LEDs to demonstrate programming. With USB power and a selection of QuickStart Project examples it's also the fastest way to get up and running.


Key Features:

  • Propeller P8X32A microcontroller.
  • Expansion header provides access to Vss, Vdd, 32 I/O pins.
  • 5 MHz crystal on board may be disabled by removing SMT jumper, allowing replacement with external through-hole crystal.
  • Eight resistive touch buttons.
  • Eight buffered LEDs.


Application Ideas:

  • Reference design.
  • Development platform.
  • Embedded processor board.


Details:

  • Open hardware reference design through our Altium and DipTrace PCB layout files (more export options may be possible).
  • Bus-powered USB coupled with 3.3V regulator for 500 mA.
  • 64KB EEPROM (32K for P8X32A program, 32K for general-purpose use).
  • External brownout reset may be installed by removing SMT jumper.
  • Pads for sigma-delta A/D circuitry (two resistors and two capacitors, both 0603) for using the Sigma-Delta A/D AppNote.
  • Power Requirements:  3.3 or 4 to 9 VDC, up to 500 mA.
  • Communication: USB, 3.3 V serial, I2C.
  • Dimensions: 2.0 x 3.0 x 0.36 in (5.0 x 7.6 x 0.84 cm) mounting hole centers separated by 3.5 x 1.0 in (88.9 x 25.4 mm).
  • Operating temp range: -40 to +185 °F (-40 to +85 °C).
