Manufacturer: Parallax
Product Code: SX-USBKEY-01_45214
Weight:0.25 lb
Reward Points:0
In Stock
30
Price: $59.95

SX-Key Programmer (USB).

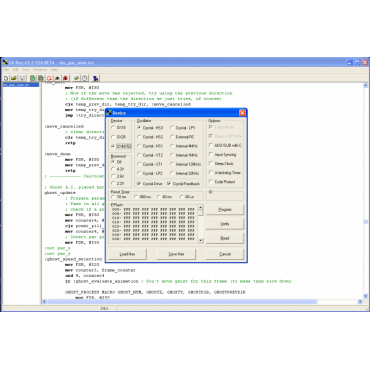

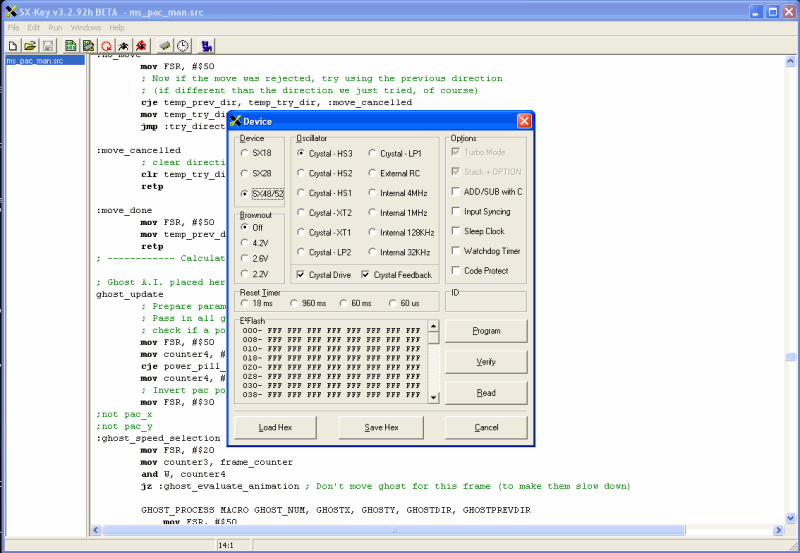

The SX-Key is a compact development tool for the SX line of microcontrollers from Parallax, supporting every chip that is commercially available. Supported by the SX-Key software, the USB SX-Key programming tool can program SX chips in-system and perform in-circuit source-level debugging. Also at the user's fingertips is an on-board programmable clock. The frequency output of this clock is adjusted from the software with a slider bar between 400 kHz and 100 MHz. The software operates on a Windows platform and is compatible with Win98/XP/2000 platforms.


Features:

  • 100% compatible with the XGameStation Micro Edition's rear interface port.
  • 100% compatible with XGameStation Pico Editions.
  • Compact design saves space.
  • Direct support for all SX models.
  • In-System Programming and In-System Debugging Supported.
  • USB interface for easy connection to PC.
  • SX-Key IDE supports assembly language and SX/BASIC.
