HB-25 Motor controller and Mounting Bracket

The Parallax HB-25 Motor Controller is our single best solution for DC motor control. This module is dependable and highly-compatible with any microcontroller that can generate a servo compatible pulse. In the simplest sense the HB-25 allows a DC Motor to be controlled much like a Continuous Rotation Servo. While the signals are compatible, the HB-25 does not require refreshing as a servo does; a single pulse can maintain the output.


Key Features:

• Motor Size: 0.5 HP Max - No Minimum.
• Motor Supply: 6.0 VDC min - 16.0 VDC max.
• Load Current: 25 A Continuous 35 A Surge (13.8 VDC).
• Standby Current: 50 mA @ 6 VDC; 80 mA @ 13.8 VDC (fan on).
• PWM Frequency: 9.2 kHz.
• Pulse Input: 1.0ms Full Reverse, 1.5ms Neutral (off), 2.0ms Full Forward.
• Pulse Refresh Rate: Single Pulse Operation.
• Modes: Single/Dual Motor Control.


Details:

• Protection Circuits: Over Voltage, Over Current, Over Heating.
• Fault Reset: Automatic.
• Indicators: Power (green), Fault (red).
• Fuse: Mini ATC Standard with (1) 25A Fuse Included.
• Cooling: Forced Air - Ball Bearing Fan.
• Terminals: Screw Post at a 35 A Rating.
• A single BASIC Stamp port can control two HB-25 modules.
• Connector allows the ability to daisy chain up to two HB-25 modules.
• Weight: 2.5oz (71 grams).

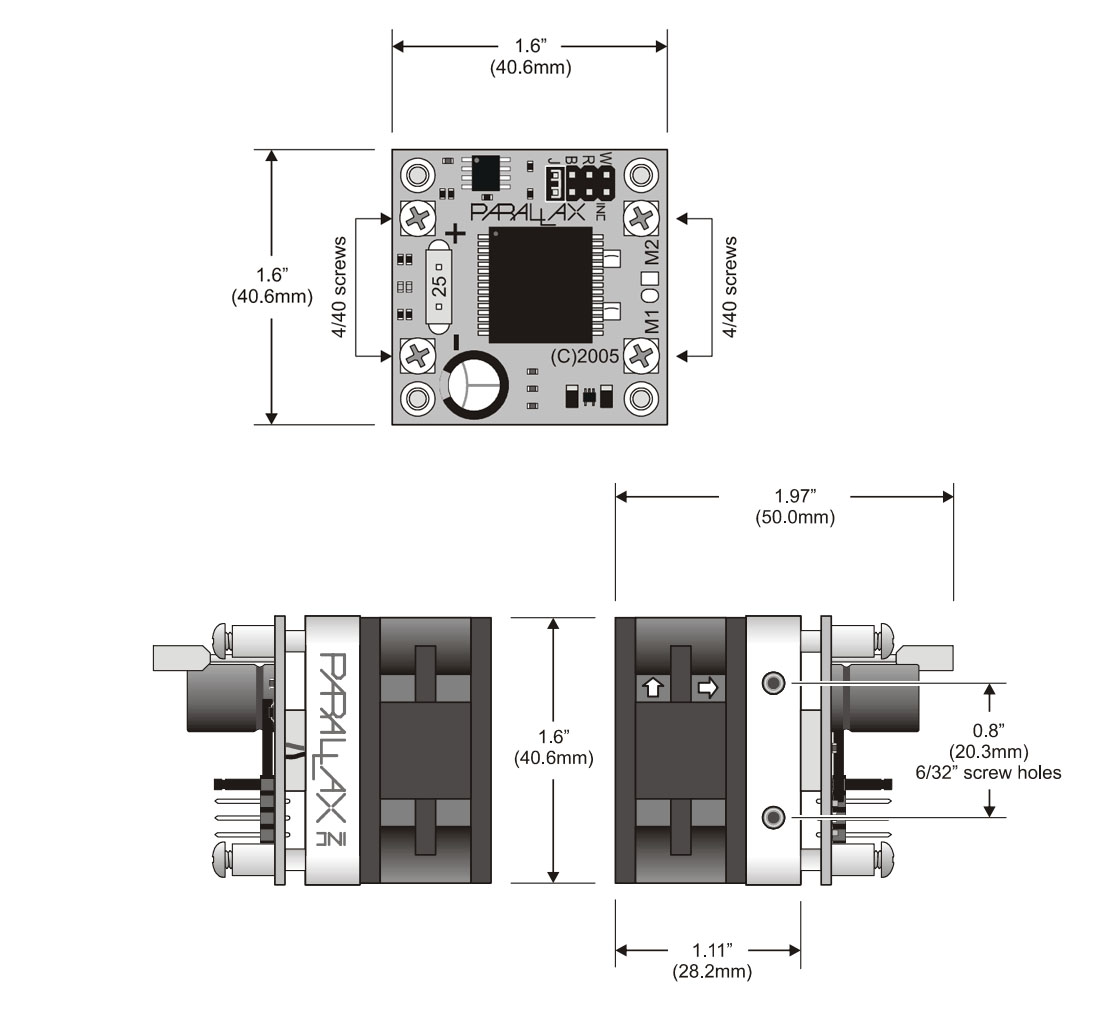

• Mounting: 2ea 6-32 screws on .800" centers.
